SUN HYDRAULICS
CXGELDN
$109.51 USD
- SUN HYDRAULICS
- Material:CXGELDN
- Model:CXGE-LDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGELDN (CXGELDN) is a highly efficient and robust check valve designed for hydraulic applications requiring minimal leakage and high pressure tolerance. This model is part of the T17A cavity series and is capable of handling up to 60 gpm (240 L/min) with a maximum operating pressure of 5000 psi (350 bar). The CXGELDN valve features a unique sidetonose cheater check configuration, allowing it to function as a standard 2-port check valve within a 3-port cavity setup, with port 3 blocked off. This makes it particularly useful for adapting existing three-port cavities into effective check valve systems without the need for extensive modifications. The valve's construction includes Sun's floating style design which minimizes internal parts binding\u2014a common issue that can arise from excessive installation torque or variations in cavity/cartridge machining. This design choice enhances the overall reliability and longevity of the valve in demanding operational conditions. The CXGELDN model also boasts an impressively low maximum leakage rate of less than one drop per minute (0.07 cc/min), ensuring efficient performance even under stringent hydraulic conditions. For installation, the valve has a hex size of 1-1/4 in (31.8 mm) and requires an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). The weight of the model is relatively light at approximately 1.60 lbs (0.70 kg), which facilitates easier handling and integration into various hydraulic systems. Additionally, this model uses Viton seals, known for their excellent resistance to high temperatures and chemicals, further enhancing its suitability for challenging environments where corrosion resistance and durability are paramount.
The Sun Hydraulics CXGELDN (CXGELDN) is a highly efficient and robust check valve designed for hydraulic applications requiring minimal leakage and high pressure tolerance. This model is part of the T17A cavity series and is capable of handling up to 60 gpm (240 L/min) with a maximum operating pressure of 5000 psi (350 bar). The CXGELDN valve features a unique sidetonose cheater check configuration, allowing it to function as a standard 2-port check valve within a 3-port cavity setup, with port 3 blocked off. This makes it particularly useful for adapting existing three-port cavities into effective check valve systems without the need for extensive modifications. The valve's construction includes Sun's floating style design which minimizes internal parts binding\u2014a common issue that can arise from excessive installation torque or variations in cavity/cartridge machining. This design choice enhances the overall reliability and longevity of the valve in demanding operational conditions. The CXGELDN model also boasts an impressively low maximum leakage rate of less than one drop per minute (0.07 cc/min), ensuring efficient performance even under stringent hydraulic conditions. For installation, the valve has a hex size of 1-1/4 in (31.8 mm) and requires an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). The weight of the model is relatively light at approximately 1.60 lbs (0.70 kg), which facilitates easier handling and integration into various hydraulic systems. Additionally, this model uses Viton seals, known for their excellent resistance to high temperatures and chemicals, further enhancing its suitability for challenging environments where corrosion resistance and durability are paramount.

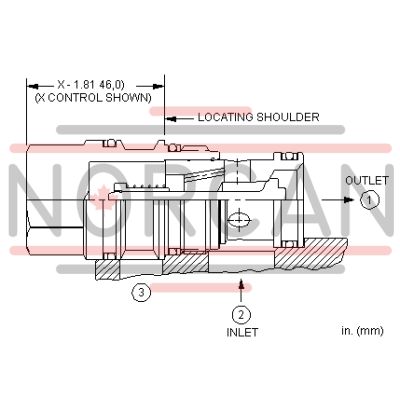

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
