SUN HYDRAULICS
CXGELEV
$115.46 USD
- SUN HYDRAULICS
- Material:CXGELEV
- Model:CXGE-LEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGELEV (CXGELEV) is a versatile hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi (350 bar) at ports 1 and 2. This model is distinguished by its free-flow, side-to-nose cheater check valve functionality within a three-port cavity design, where port 3 of the cartridge is blocked off. This configuration makes it particularly useful in circuits that require a check valve in an existing three-port cavity. The CXGELEV features low leakage rates, with maximum leakage less than one drop per minute (0.07 cc/min), ensuring efficient and reliable operation in critical applications. The valve's design incorporates Sun\u2019s floating style construction which minimizes the potential for internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the durability and longevity of the valve under various installation conditions. With a flow capacity of up to 60 gpm (240 L/min), this model is suitable for substantial hydraulic flow requirements. It also supports a maximum operating pressure of 5000 psi (350 bar), making it robust enough for demanding applications. The CXGELEV is designed to be corrosion-resistant, ideal for use in corrosive environments, although specific model codes such as AP or LH should be referred to for details on materials of construction. Installation specifications include a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150 - 160 lbf\u00b7ft (203 - 217 Nm), with the overall model weight at approximately 1.60 lbs (0.70 kg). This model uses Viton seals for enhanced performance under varying conditions, indicated by the seal kit/cartridge Viton: 990017006. Overall, the Sun Hydraulics CXGELEV offers robust performance with high reliability and minimal maintenance needs, suited for sophisticated hydraulic systems requiring precise flow control and check functionalities.
The Sun Hydraulics CXGELEV (CXGELEV) is a versatile hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi (350 bar) at ports 1 and 2. This model is distinguished by its free-flow, side-to-nose cheater check valve functionality within a three-port cavity design, where port 3 of the cartridge is blocked off. This configuration makes it particularly useful in circuits that require a check valve in an existing three-port cavity. The CXGELEV features low leakage rates, with maximum leakage less than one drop per minute (0.07 cc/min), ensuring efficient and reliable operation in critical applications. The valve's design incorporates Sun\u2019s floating style construction which minimizes the potential for internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the durability and longevity of the valve under various installation conditions. With a flow capacity of up to 60 gpm (240 L/min), this model is suitable for substantial hydraulic flow requirements. It also supports a maximum operating pressure of 5000 psi (350 bar), making it robust enough for demanding applications. The CXGELEV is designed to be corrosion-resistant, ideal for use in corrosive environments, although specific model codes such as AP or LH should be referred to for details on materials of construction. Installation specifications include a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150 - 160 lbf\u00b7ft (203 - 217 Nm), with the overall model weight at approximately 1.60 lbs (0.70 kg). This model uses Viton seals for enhanced performance under varying conditions, indicated by the seal kit/cartridge Viton: 990017006. Overall, the Sun Hydraulics CXGELEV offers robust performance with high reliability and minimal maintenance needs, suited for sophisticated hydraulic systems requiring precise flow control and check functionalities.

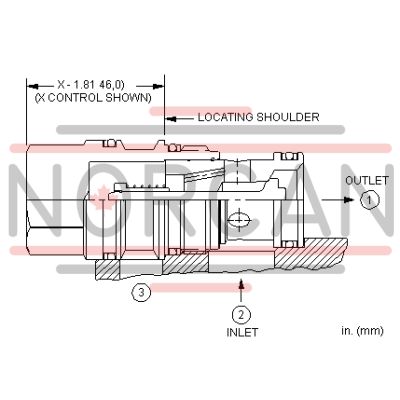

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
