SUN HYDRAULICS
CXGELZN
$111.49 USD
- SUN HYDRAULICS
- Material:CXGELZN
- Model:CXGE-LZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGELZN (CXGELZN) is a high-performance check valve designed for hydraulic applications requiring reliable, low-leakage one-way flow control in a compact form factor. This valve operates as a standard 2-port check valve within a 3-port cavity configuration, with the third port blocked off, making it particularly useful for adapting existing three-port systems without extensive modifications. The CXGELZN model is engineered to handle a maximum operating pressure of 5000 psi (350 bar) at both ports 1 and 2, ensuring robust performance under demanding conditions. Featuring Sun's innovative floating style construction, the CXGELZN minimizes the risk of internal parts binding which can occur due to over-torquing during installation or from variations in cavity or cartridge machining. This design enhances the overall reliability and longevity of the valve. The check valve is also characterized by its exceptional leakage control, maintaining leakage rates at less than one drop per minute (0.07 cc/min), which is crucial for maintaining system efficiency and preventing fluid loss. Designed to fit within a T17A cavity and part of Sun\u2019s Series 3 lineup, this model boasts a substantial capacity of up to 60 gpm (240 L/min), accommodating high-flow applications smoothly. It also features corrosion-resistant options suitable for corrosive environments, although specific models with suffixes AP or LH should be referred for such requirements. The valve\u2019s dimensions include a hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150 - 160 lbf\u00b7ft (203 - 217 Nm). Moreover, the CXGELZN weighs approximately 1.60 lbs (0.70 kg), making it lightweight yet durable for various hydraulic circuit implementations.
The Sun Hydraulics CXGELZN (CXGELZN) is a high-performance check valve designed for hydraulic applications requiring reliable, low-leakage one-way flow control in a compact form factor. This valve operates as a standard 2-port check valve within a 3-port cavity configuration, with the third port blocked off, making it particularly useful for adapting existing three-port systems without extensive modifications. The CXGELZN model is engineered to handle a maximum operating pressure of 5000 psi (350 bar) at both ports 1 and 2, ensuring robust performance under demanding conditions. Featuring Sun's innovative floating style construction, the CXGELZN minimizes the risk of internal parts binding which can occur due to over-torquing during installation or from variations in cavity or cartridge machining. This design enhances the overall reliability and longevity of the valve. The check valve is also characterized by its exceptional leakage control, maintaining leakage rates at less than one drop per minute (0.07 cc/min), which is crucial for maintaining system efficiency and preventing fluid loss. Designed to fit within a T17A cavity and part of Sun\u2019s Series 3 lineup, this model boasts a substantial capacity of up to 60 gpm (240 L/min), accommodating high-flow applications smoothly. It also features corrosion-resistant options suitable for corrosive environments, although specific models with suffixes AP or LH should be referred for such requirements. The valve\u2019s dimensions include a hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150 - 160 lbf\u00b7ft (203 - 217 Nm). Moreover, the CXGELZN weighs approximately 1.60 lbs (0.70 kg), making it lightweight yet durable for various hydraulic circuit implementations.

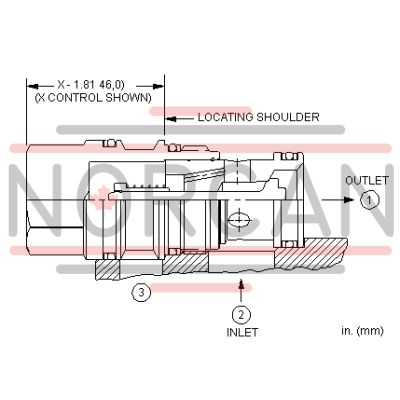

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
