SUN HYDRAULICS
CXGEXDN
$101.56 USD
- SUN HYDRAULICS
- Material:CXGEXDN
- Model:CXGE-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGEXDN (CXGEXDN) is a high-performance, side-to-nose cheater check valve designed for specialized hydraulic applications. This valve functions as a standard 2-port check valve within a 3-port cavity, with port 3 of the cartridge effectively blocked off. This design is particularly useful in circuits requiring a check valve in an existing three-port cavity configuration. The CXGEXDN is capable of handling flow rates up to 60 gpm (240 L/min) and can withstand maximum operating pressures up to 5000 psi (350 bar). Key features include extremely low leakage rates, less than one drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. The construction of the CXGEXDN incorporates Sun\u2019s floating style to minimize internal parts binding, which could arise from excessive installation torque or variations in cavity/cartridge machining. This robust design enhances the reliability and longevity of the valve in demanding environments. The valve's dimensions include a hex size of 1-1/4 inches (31.8 mm) and it requires an installation torque between 150 - 160 lbf-ft (203 - 217 Nm). The weight of the model is approximately 1.60 lbs (0.70 kg), making it suitable for various industrial applications without adding significant weight to the system. Additionally, it utilizes Viton seals for enhanced durability and performance under corrosive conditions. Overall, the Sun Hydraulics CXGEXDN check valve offers superior performance in hydraulic systems where space constraints and existing configurations necessitate a compact yet powerful solution.
The Sun Hydraulics CXGEXDN (CXGEXDN) is a high-performance, side-to-nose cheater check valve designed for specialized hydraulic applications. This valve functions as a standard 2-port check valve within a 3-port cavity, with port 3 of the cartridge effectively blocked off. This design is particularly useful in circuits requiring a check valve in an existing three-port cavity configuration. The CXGEXDN is capable of handling flow rates up to 60 gpm (240 L/min) and can withstand maximum operating pressures up to 5000 psi (350 bar). Key features include extremely low leakage rates, less than one drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. The construction of the CXGEXDN incorporates Sun\u2019s floating style to minimize internal parts binding, which could arise from excessive installation torque or variations in cavity/cartridge machining. This robust design enhances the reliability and longevity of the valve in demanding environments. The valve's dimensions include a hex size of 1-1/4 inches (31.8 mm) and it requires an installation torque between 150 - 160 lbf-ft (203 - 217 Nm). The weight of the model is approximately 1.60 lbs (0.70 kg), making it suitable for various industrial applications without adding significant weight to the system. Additionally, it utilizes Viton seals for enhanced durability and performance under corrosive conditions. Overall, the Sun Hydraulics CXGEXDN check valve offers superior performance in hydraulic systems where space constraints and existing configurations necessitate a compact yet powerful solution.

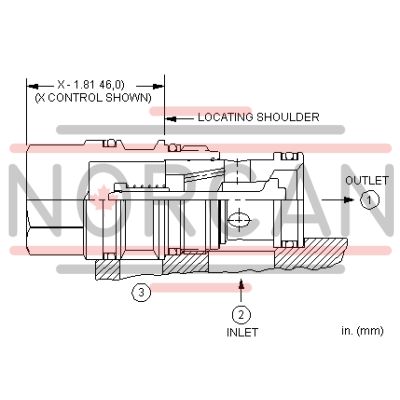

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
