SUN HYDRAULICS
CXGEXFN
$101.56 USD
- SUN HYDRAULICS
- Material:CXGEXFN
- Model:CXGE-XFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGEXFN (CXGEXFN) is a specialized hydraulic component designed for high-performance fluid control applications. This model is a free-flow, side-to-nose cheater check valve that operates as a standard 2-port check valve within a 3-port cavity, with the third port effectively blocked. This configuration makes it particularly useful in scenarios where a check valve integration is needed in pre-existing three-port cavities. The CXGEXFN valve is compatible with cavities designated as T17A and falls under the Series 3 category. It boasts a substantial flow capacity of up to 60 gpm (240 L/min) and can handle maximum operating pressures up to 5000 psi (350 bar). One of its significant features includes an extremely low leakage rate, which does not exceed 1 drop per minute (approximately 0.07 cc/min), ensuring efficient and clean operation. Constructed to resist corrosion, this model can be identified by specific suffixes in its model code, indicating its suitability for corrosive environments. The CXGEXFN employs Sun\u2019s floating style construction which helps minimize internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. For installation, the valve requires a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). The unit itself weighs about 1.60 lbs (0.70 kg), making it robust yet manageable for various installations without adding significant weight to the system setup. Overall, the Sun Hydraulics CXGEXFN check valve is engineered for reliability and precision in controlling fluid flow within hydraulic systems, particularly where space and existing configurations pose constraints.
The Sun Hydraulics CXGEXFN (CXGEXFN) is a specialized hydraulic component designed for high-performance fluid control applications. This model is a free-flow, side-to-nose cheater check valve that operates as a standard 2-port check valve within a 3-port cavity, with the third port effectively blocked. This configuration makes it particularly useful in scenarios where a check valve integration is needed in pre-existing three-port cavities. The CXGEXFN valve is compatible with cavities designated as T17A and falls under the Series 3 category. It boasts a substantial flow capacity of up to 60 gpm (240 L/min) and can handle maximum operating pressures up to 5000 psi (350 bar). One of its significant features includes an extremely low leakage rate, which does not exceed 1 drop per minute (approximately 0.07 cc/min), ensuring efficient and clean operation. Constructed to resist corrosion, this model can be identified by specific suffixes in its model code, indicating its suitability for corrosive environments. The CXGEXFN employs Sun\u2019s floating style construction which helps minimize internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. For installation, the valve requires a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). The unit itself weighs about 1.60 lbs (0.70 kg), making it robust yet manageable for various installations without adding significant weight to the system setup. Overall, the Sun Hydraulics CXGEXFN check valve is engineered for reliability and precision in controlling fluid flow within hydraulic systems, particularly where space and existing configurations pose constraints.

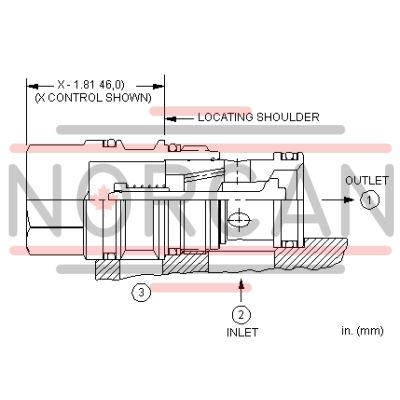

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
