SUN HYDRAULICS
CXHAXCE
$191.01 USD
- SUN HYDRAULICS
- Material:CXHAXCE
- Model:CXHA-XCE
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXHAXCE (CXHAXCE) is a high-performance, free-flow, nose-to-side check valve designed to facilitate smooth hydraulic operations. This valve allows unimpeded flow from the inlet port 1 to the outlet port 2 while blocking flow in the opposite direction, ensuring efficient operation in various hydraulic systems. The CXHAXCE model is distinguished by its capacity to handle a maximum operating pressure of 5000 psi (350 bar) and a flow capacity up to 80 gpm (320 L/min), making it suitable for robust applications. This check valve features exceptionally low leakage rates, with a maximum leakage of less than one drop per minute (0.07 cc/min), contributing to its reliability and efficiency in maintaining system integrity. It fits within a T16A cavity and is part of Sun Hydraulics' Series 3, characterized by its adaptability across different system requirements. The construction of the CXHAXCE includes Sun Hydraulics' floating style design which minimizes potential internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. This feature enhances the durability and longevity of the valve under varied operational conditions. Additionally, this model comes with EPDM seals configured for use with phosphate ester fluids; however, these seals are susceptible to damage if exposed to petroleum-based fluids, greases, and lubricants. For environments prone to corrosion, variants with AP or LH suffixes in the model code are recommended due to their corrosion-resistant properties. With an installation torque requirement between 150-160 lbf.ft (203-217 Nm) and weighing at approximately 1.60 lbs (0.70 kg), the CXHAXCE combines ease of installation with robust performance, making it an essential component for efficient hydraulic system management.
The Sun Hydraulics CXHAXCE (CXHAXCE) is a high-performance, free-flow, nose-to-side check valve designed to facilitate smooth hydraulic operations. This valve allows unimpeded flow from the inlet port 1 to the outlet port 2 while blocking flow in the opposite direction, ensuring efficient operation in various hydraulic systems. The CXHAXCE model is distinguished by its capacity to handle a maximum operating pressure of 5000 psi (350 bar) and a flow capacity up to 80 gpm (320 L/min), making it suitable for robust applications. This check valve features exceptionally low leakage rates, with a maximum leakage of less than one drop per minute (0.07 cc/min), contributing to its reliability and efficiency in maintaining system integrity. It fits within a T16A cavity and is part of Sun Hydraulics' Series 3, characterized by its adaptability across different system requirements. The construction of the CXHAXCE includes Sun Hydraulics' floating style design which minimizes potential internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. This feature enhances the durability and longevity of the valve under varied operational conditions. Additionally, this model comes with EPDM seals configured for use with phosphate ester fluids; however, these seals are susceptible to damage if exposed to petroleum-based fluids, greases, and lubricants. For environments prone to corrosion, variants with AP or LH suffixes in the model code are recommended due to their corrosion-resistant properties. With an installation torque requirement between 150-160 lbf.ft (203-217 Nm) and weighing at approximately 1.60 lbs (0.70 kg), the CXHAXCE combines ease of installation with robust performance, making it an essential component for efficient hydraulic system management.

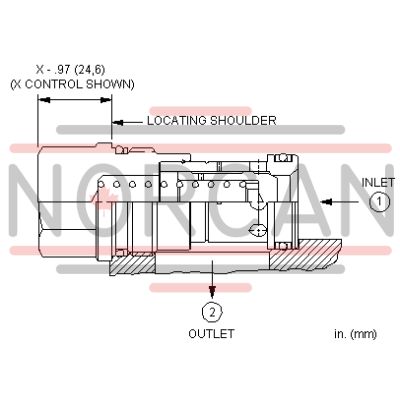

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 80 gpm320 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
