SUN HYDRAULICS
CXHAXDE
$193.00 USD
- SUN HYDRAULICS
- Material:CXHAXDE
- Model:CXHA-XDE
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXHAXDE (CXHAXDE) is a high-performance check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This model is part of the T16A cavity series and can handle a substantial flow capacity of up to 80 gpm (320 L/min), making it suitable for various high-flow applications. The CXHAXDE is engineered to withstand maximum operating pressures of up to 5000 psi (350 bar), ensuring durability and resilience in demanding environments. This valve features extremely low leakage rates, with less than one drop per minute (0.07 cc/min), contributing to system efficiency and minimizing fluid loss. It is specifically constructed with EPDM seals configured for compatibility with phosphate ester fluids, although these seals must not be exposed to petroleum-based fluids, greases, and lubricants as they can cause damage. The CXHAXDE incorporates Sun Hydraulics' floating style construction which reduces the risk of internal parts binding\u2014a common issue that can arise from excessive installation torque or variations in cavity/cartridge machining. It has a hex size of 1 1/4 inches (31.8 mm) and requires an installation torque between 150 - 160 lbf ft (203 - 217 Nm). The model weighs approximately 1.60 lbs (0.70 kg), making it robust yet manageable for installation. This check valve is an optimal choice for systems where high flow rates and pressure capabilities are necessary, along with stringent leakage control. Its design ensures long-term reliability and performance in corrosive environments when configured with the appropriate model code suffixes AP or LH, which indicate enhanced corrosion resistance.
The Sun Hydraulics CXHAXDE (CXHAXDE) is a high-performance check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This model is part of the T16A cavity series and can handle a substantial flow capacity of up to 80 gpm (320 L/min), making it suitable for various high-flow applications. The CXHAXDE is engineered to withstand maximum operating pressures of up to 5000 psi (350 bar), ensuring durability and resilience in demanding environments. This valve features extremely low leakage rates, with less than one drop per minute (0.07 cc/min), contributing to system efficiency and minimizing fluid loss. It is specifically constructed with EPDM seals configured for compatibility with phosphate ester fluids, although these seals must not be exposed to petroleum-based fluids, greases, and lubricants as they can cause damage. The CXHAXDE incorporates Sun Hydraulics' floating style construction which reduces the risk of internal parts binding\u2014a common issue that can arise from excessive installation torque or variations in cavity/cartridge machining. It has a hex size of 1 1/4 inches (31.8 mm) and requires an installation torque between 150 - 160 lbf ft (203 - 217 Nm). The model weighs approximately 1.60 lbs (0.70 kg), making it robust yet manageable for installation. This check valve is an optimal choice for systems where high flow rates and pressure capabilities are necessary, along with stringent leakage control. Its design ensures long-term reliability and performance in corrosive environments when configured with the appropriate model code suffixes AP or LH, which indicate enhanced corrosion resistance.

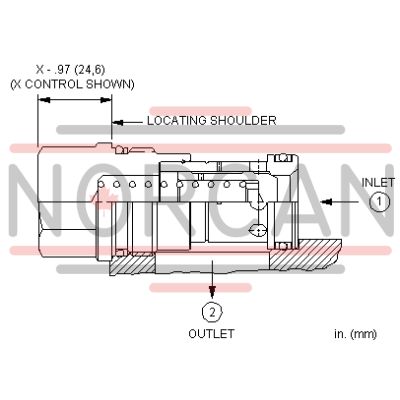

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 80 gpm320 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
