SUN HYDRAULICS
CXHAXFE
$193.00 USD
- SUN HYDRAULICS
- Material:CXHAXFE
- Model:CXHA-XFE
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXHAXFE (CXHAXFE) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This valve allows free flow from the inlet (port 1) to the outlet (port 2) while blocking flow in the reverse direction, ensuring operational efficiency and safety in hydraulic systems. The CXHAXFE model is distinguished by its low leakage rate, with a maximum of less than one drop per minute (0.07 cc/min), making it an excellent choice for systems where fluid conservation and cleanliness are priorities. Constructed to handle a maximum operating pressure of 5000 psi (350 bar) and a flow capacity up to 80 gpm (320 L/min), this valve is robust enough for high-pressure applications. It features Sun\u2019s floating style construction which reduces the risk of internal parts binding\u2014a common issue due to excessive installation torque or cavity/cartridge machining variations. The valve is compatible with EPDM seals specifically configured for use with phosphate ester fluids, though it should not be exposed to petroleum-based fluids which could damage the seals. The CXHAXFE check valve fits a T16A cavity and adheres to Series 3 specifications. It requires an installation torque between 150-160 lbf ft (203-217 Nm) and has a hex size of 1-1/4 inches (31.8 mm). Weighing at approximately 1.60 lbs (0.70 kg), it\u2019s designed for easy integration into existing hydraulic systems without significant modifications. This model\u2019s durability and reliability make it suitable for various hydraulic applications where fluid control is critical.
The Sun Hydraulics CXHAXFE (CXHAXFE) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This valve allows free flow from the inlet (port 1) to the outlet (port 2) while blocking flow in the reverse direction, ensuring operational efficiency and safety in hydraulic systems. The CXHAXFE model is distinguished by its low leakage rate, with a maximum of less than one drop per minute (0.07 cc/min), making it an excellent choice for systems where fluid conservation and cleanliness are priorities. Constructed to handle a maximum operating pressure of 5000 psi (350 bar) and a flow capacity up to 80 gpm (320 L/min), this valve is robust enough for high-pressure applications. It features Sun\u2019s floating style construction which reduces the risk of internal parts binding\u2014a common issue due to excessive installation torque or cavity/cartridge machining variations. The valve is compatible with EPDM seals specifically configured for use with phosphate ester fluids, though it should not be exposed to petroleum-based fluids which could damage the seals. The CXHAXFE check valve fits a T16A cavity and adheres to Series 3 specifications. It requires an installation torque between 150-160 lbf ft (203-217 Nm) and has a hex size of 1-1/4 inches (31.8 mm). Weighing at approximately 1.60 lbs (0.70 kg), it\u2019s designed for easy integration into existing hydraulic systems without significant modifications. This model\u2019s durability and reliability make it suitable for various hydraulic applications where fluid control is critical.

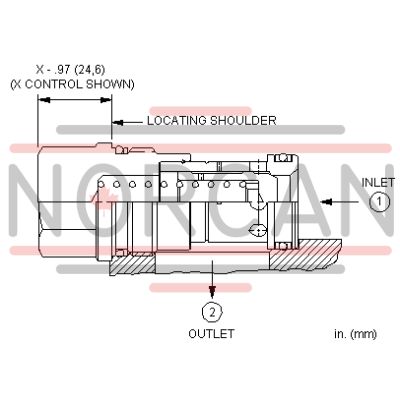

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 80 gpm320 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
