SUN HYDRAULICS
CXHAXFV
$89.35 USD
- SUN HYDRAULICS
- Material:CXHAXFV
- Model:CXHA-XFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXHAXFV (CXHAXFV) is a high-performance check valve designed for hydraulic applications where one-way flow is necessary. This model, part of the T16A cavity series 3, supports a maximum flow capacity of 80 gpm (320 L/min) and can handle pressures up to 5000 psi (350 bar). The valve features a maximum leakage rate of less than one drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. It is equipped with a 1 1/4 in. (31.8 mm) hex size for installation and requires an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). The CXHAXFV valve utilizes Sun's floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing its reliability and performance longevity. The cartridge itself weighs about 1.60 lb (0.70 kg) and is available with Viton seals under the kit number 990016006, specifically designed to withstand the rigors of phosphate ester fluids while avoiding damage from exposure to petroleum-based fluids. This model\u2019s robust design and precise engineering make it suitable for various applications requiring reliable check functionality in hydraulic circuits, particularly where corrosion resistance and low leakage are critical considerations.
The Sun Hydraulics CXHAXFV (CXHAXFV) is a high-performance check valve designed for hydraulic applications where one-way flow is necessary. This model, part of the T16A cavity series 3, supports a maximum flow capacity of 80 gpm (320 L/min) and can handle pressures up to 5000 psi (350 bar). The valve features a maximum leakage rate of less than one drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. It is equipped with a 1 1/4 in. (31.8 mm) hex size for installation and requires an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). The CXHAXFV valve utilizes Sun's floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing its reliability and performance longevity. The cartridge itself weighs about 1.60 lb (0.70 kg) and is available with Viton seals under the kit number 990016006, specifically designed to withstand the rigors of phosphate ester fluids while avoiding damage from exposure to petroleum-based fluids. This model\u2019s robust design and precise engineering make it suitable for various applications requiring reliable check functionality in hydraulic circuits, particularly where corrosion resistance and low leakage are critical considerations.

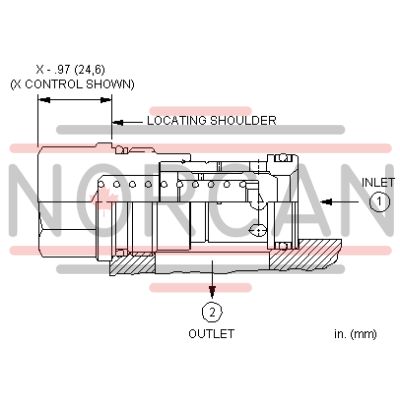

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 80 gpm320 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
