SUN HYDRAULICS
CXHCXAV
$99.98 USD
- SUN HYDRAULICS
- Material:CXHCXAV
- Model:CXHC-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXHCXAV (CXHCXAV) is a versatile hydraulic check valve designed for high-efficiency fluid control in various applications. This model is particularly suited for use in systems requiring a reliable check valve in a three-port cavity, with the third port effectively blocked off. The CXHCXAV stands out for its innovative free-flow, nose-to-side cheater check valve functionality, which operates as a standard 2-port check valve within a 3-port configuration. This valve is engineered to handle a maximum flow capacity of 80 gpm (320 L/min) and can sustain an operating pressure up to 5000 psi (350 bar). It features an exceptionally low leakage rate, less than 1 drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system efficiency. The construction of the CXHCXAV incorporates Sun's floating style design which reduces the risk of internal parts binding\u2014a common issue resulting from over-torquing during installation or due to variations in cavity/cartridge machining. With a hex size of 1-1/4 inches (31.8 mm), and an installation torque requirement between 150 and 160 lbf.ft (203 - 217 Nm), this valve is robust yet straightforward to install. It utilizes Viton seals, as indicated by the seal kit number 990017006, providing excellent compatibility with various fluids and environmental conditions. The T17A cavity designation and Series 3 classification further specify the installation parameters and design series, ensuring that users can accurately identify compatibility with existing systems or requirements for new installations.
The Sun Hydraulics CXHCXAV (CXHCXAV) is a versatile hydraulic check valve designed for high-efficiency fluid control in various applications. This model is particularly suited for use in systems requiring a reliable check valve in a three-port cavity, with the third port effectively blocked off. The CXHCXAV stands out for its innovative free-flow, nose-to-side cheater check valve functionality, which operates as a standard 2-port check valve within a 3-port configuration. This valve is engineered to handle a maximum flow capacity of 80 gpm (320 L/min) and can sustain an operating pressure up to 5000 psi (350 bar). It features an exceptionally low leakage rate, less than 1 drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system efficiency. The construction of the CXHCXAV incorporates Sun's floating style design which reduces the risk of internal parts binding\u2014a common issue resulting from over-torquing during installation or due to variations in cavity/cartridge machining. With a hex size of 1-1/4 inches (31.8 mm), and an installation torque requirement between 150 and 160 lbf.ft (203 - 217 Nm), this valve is robust yet straightforward to install. It utilizes Viton seals, as indicated by the seal kit number 990017006, providing excellent compatibility with various fluids and environmental conditions. The T17A cavity designation and Series 3 classification further specify the installation parameters and design series, ensuring that users can accurately identify compatibility with existing systems or requirements for new installations.

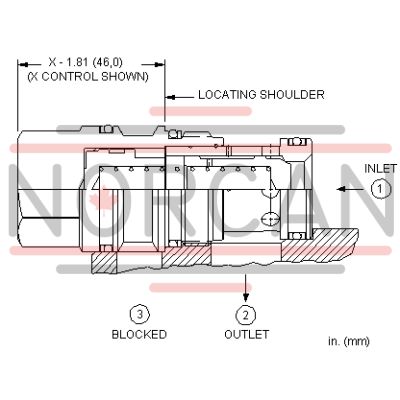

Free-flow, nose-to-side cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 80 gpm320 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Seal kit - Cartridge | Viton: 990-017-006 |
