SUN HYDRAULICS
CXIBLAV
$308.07 USD
- SUN HYDRAULICS
- Material:CXIBLAV
- Model:CXIB-LAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIBLAV (CXIBLAV) is a high-performance check valve designed for hydraulic systems, featuring a free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. The valve is equipped with a Delrin seat, making it suitable for medium pressure systems that may contain some level of contamination. This model is particularly useful in applications where manifold drillings are incorrect, acting as a circuit saver by correcting flow paths without the need to alter existing circuits. The CXIBLAV operates under a maximum pressure of 3000 psi (210 bar) and can handle capacities up to 120 gpm (480 L/min), despite its compact design, which weighs only 2.10 lbs (0.95 kg). The valve's construction incorporates Sun\u2019s floating style, which minimizes internal parts binding\u2014a common issue stemming from excessive installation torque or cavity/cartridge machining variations. This model ensures extremely low leakage rates at less than one drop per minute (0.07 cc/min), providing an efficient seal and preventing fluid loss even under high-pressure conditions. Installation requires specific torque settings between 350 and 375 lbf-ft (474 \u2013 508 Nm), and it uses a hex size of 1 5/8 in (41.3 mm). For maintenance or repairs, a Viton seal kit/cartridge is available under the part number 990018006. Overall, the Sun Hydraulics CXIBLAV check valve is an essential component for hydraulic systems requiring reliable one-way flow capabilities with minimal leakage and robust protection against installation variances and system contaminants.
The Sun Hydraulics CXIBLAV (CXIBLAV) is a high-performance check valve designed for hydraulic systems, featuring a free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. The valve is equipped with a Delrin seat, making it suitable for medium pressure systems that may contain some level of contamination. This model is particularly useful in applications where manifold drillings are incorrect, acting as a circuit saver by correcting flow paths without the need to alter existing circuits. The CXIBLAV operates under a maximum pressure of 3000 psi (210 bar) and can handle capacities up to 120 gpm (480 L/min), despite its compact design, which weighs only 2.10 lbs (0.95 kg). The valve's construction incorporates Sun\u2019s floating style, which minimizes internal parts binding\u2014a common issue stemming from excessive installation torque or cavity/cartridge machining variations. This model ensures extremely low leakage rates at less than one drop per minute (0.07 cc/min), providing an efficient seal and preventing fluid loss even under high-pressure conditions. Installation requires specific torque settings between 350 and 375 lbf-ft (474 \u2013 508 Nm), and it uses a hex size of 1 5/8 in (41.3 mm). For maintenance or repairs, a Viton seal kit/cartridge is available under the part number 990018006. Overall, the Sun Hydraulics CXIBLAV check valve is an essential component for hydraulic systems requiring reliable one-way flow capabilities with minimal leakage and robust protection against installation variances and system contaminants.

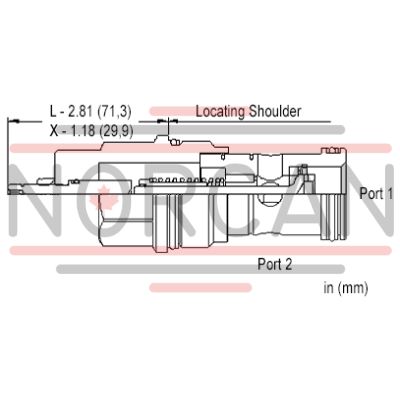

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
