SUN HYDRAULICS
CXIBXBN
$292.68 USD
- SUN HYDRAULICS
- Material:CXIBXBN
- Model:CXIB-XBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIBXBN (CXIBXBN) is a robust check valve designed for hydraulic systems requiring reliable, one-way flow control. This model, featuring a Delrin seat, is particularly suited for medium pressure systems that encounter dirty conditions but do not experience high flow rates or extreme temperatures. The CXIBXBN operates efficiently by allowing free flow from its inlet port 2 to the outlet port 1 while blocking flow in the reverse direction. This valve is part of the T18A cavity series and is built to accommodate a maximum flow capacity of 120 gpm (480 L/min) with an operational pressure limit of 3000 psi (210 bar). One of its key features includes extremely low leakage rates, maintaining less than 1 drop per minute (0.07 cc/min), which ensures minimal fluid loss and enhances system efficiency. The check valve's hex size measures at 1 5/8 inches (41.3 mm), and it requires an installation torque between 350 - 375 lbf\u00b7ft (474 - 508 Nm). Weighing in at approximately 2.10 lbs (0.95 kg), this model integrates Sun\u2019s floating style construction which helps prevent internal parts from binding due to variations in installation torque or cavity/cartridge machining. Furthermore, the CXIBXBN serves as a circuit saver in scenarios where manifold drillings are incorrect, providing a practical solution without the need for extensive modifications. Its design and functionality make it an essential component for ensuring consistent and reliable operation in various hydraulic applications.
The Sun Hydraulics CXIBXBN (CXIBXBN) is a robust check valve designed for hydraulic systems requiring reliable, one-way flow control. This model, featuring a Delrin seat, is particularly suited for medium pressure systems that encounter dirty conditions but do not experience high flow rates or extreme temperatures. The CXIBXBN operates efficiently by allowing free flow from its inlet port 2 to the outlet port 1 while blocking flow in the reverse direction. This valve is part of the T18A cavity series and is built to accommodate a maximum flow capacity of 120 gpm (480 L/min) with an operational pressure limit of 3000 psi (210 bar). One of its key features includes extremely low leakage rates, maintaining less than 1 drop per minute (0.07 cc/min), which ensures minimal fluid loss and enhances system efficiency. The check valve's hex size measures at 1 5/8 inches (41.3 mm), and it requires an installation torque between 350 - 375 lbf\u00b7ft (474 - 508 Nm). Weighing in at approximately 2.10 lbs (0.95 kg), this model integrates Sun\u2019s floating style construction which helps prevent internal parts from binding due to variations in installation torque or cavity/cartridge machining. Furthermore, the CXIBXBN serves as a circuit saver in scenarios where manifold drillings are incorrect, providing a practical solution without the need for extensive modifications. Its design and functionality make it an essential component for ensuring consistent and reliable operation in various hydraulic applications.

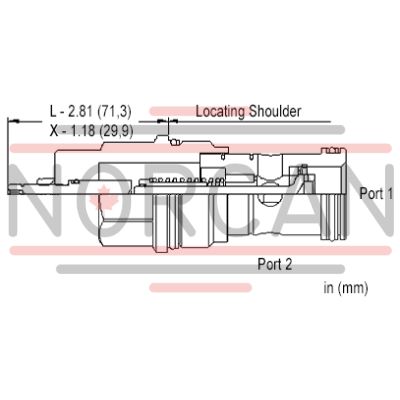

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
