SUN HYDRAULICS
CXIBXDN
$292.68 USD
- SUN HYDRAULICS
- Material:CXIBXDN
- Model:CXIB-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIBXDN (CXIBXDN) is a highly efficient and reliable hydraulic check valve designed for medium pressure systems. This model features a Delrin seat, making it particularly suitable for environments with dirty conditions, where the system is not exposed to high flows or temperatures. The CXIBXDN operates by allowing free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction, which helps in maintaining the desired flow direction and preventing backflow. The valve is specifically designed to be used as a circuit saver in existing circuits where there may have been errors in manifold drillings. It offers a reduced capacity of about 30% compared to models with a nose-to-side flow path, yet still supports up to 120 gpm/480 L/min flow capacity and can handle maximum operating pressures up to 3000 psi/210 bar. The CXIBXDN boasts an extremely low leakage rate, with maximum valve leakage rated at less than one drop per minute (0.07 cc/min), ensuring minimal loss and efficient operation. Constructed using Sun's floating style design, the CXIBXDN minimizes potential internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the overall durability and reliability of the valve under varying operational conditions. The model requires an installation torque between 350 - 375 lbf ft (474 - 508 Nm) and has a compact weight of approximately 2.10 lb (0.95 kg). Additionally, it utilizes Viton seals for improved performance across different applications. Overall, the Sun Hydraulics CXIBXDN check valve is an ideal choice for hydraulic systems requiring robust performance in challenging environments, ensuring both efficiency and reliability in medium pressure applications.
The Sun Hydraulics CXIBXDN (CXIBXDN) is a highly efficient and reliable hydraulic check valve designed for medium pressure systems. This model features a Delrin seat, making it particularly suitable for environments with dirty conditions, where the system is not exposed to high flows or temperatures. The CXIBXDN operates by allowing free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction, which helps in maintaining the desired flow direction and preventing backflow. The valve is specifically designed to be used as a circuit saver in existing circuits where there may have been errors in manifold drillings. It offers a reduced capacity of about 30% compared to models with a nose-to-side flow path, yet still supports up to 120 gpm/480 L/min flow capacity and can handle maximum operating pressures up to 3000 psi/210 bar. The CXIBXDN boasts an extremely low leakage rate, with maximum valve leakage rated at less than one drop per minute (0.07 cc/min), ensuring minimal loss and efficient operation. Constructed using Sun's floating style design, the CXIBXDN minimizes potential internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the overall durability and reliability of the valve under varying operational conditions. The model requires an installation torque between 350 - 375 lbf ft (474 - 508 Nm) and has a compact weight of approximately 2.10 lb (0.95 kg). Additionally, it utilizes Viton seals for improved performance across different applications. Overall, the Sun Hydraulics CXIBXDN check valve is an ideal choice for hydraulic systems requiring robust performance in challenging environments, ensuring both efficiency and reliability in medium pressure applications.

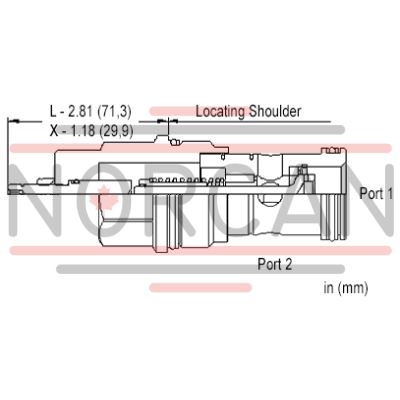

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
