SUN HYDRAULICS
CXIBXFN
$292.68 USD
- SUN HYDRAULICS
- Material:CXIBXFN
- Model:CXIB-XFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIBXFN (CXIBXFN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model utilizes a Delrin seat which is particularly suited for environments where the hydraulic medium may carry particulate contaminants and operates under medium pressure conditions. The CXIBXFN offers a free flow from port 2 to port 1 while blocking the flow in the reverse direction, making it an effective solution for circuit protection and correction in systems with incorrectly drilled manifolds. The valve features Sun Hydraulics' floating style construction, which helps to prevent binding of internal components that might occur due to over-torquing during installation or due to variations in cavity or cartridge machining. This design enhancement ensures consistent performance and longevity of the valve under operational stresses. Specifications include a maximum operating pressure of 3000 psi (210 bar) and a flow capacity of up to 120 gpm (480 L/min), making it suitable for a wide range of hydraulic applications. The CXIBXFN also boasts extremely low leakage rates, with maximum valve leakage specified at less than one drop per minute (0.07 cc/min), ensuring efficiency and minimal fluid loss during operation. The physical attributes include a valve hex size of 1-5/8 inches (41.3 mm) and an installation torque requirement between 350 - 375 lbf\u00b7ft (474 - 508 Nm). The model weighs approximately 2.10 lbs (0.95 kg), facilitating easier handling and installation without compromising on robustness or durability. For maintenance, the CXIBXFN is compatible with Viton seal kits specified as part number: 990018006, ensuring long-term reliability and ease of serviceability in various hydraulic setups.
The Sun Hydraulics CXIBXFN (CXIBXFN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model utilizes a Delrin seat which is particularly suited for environments where the hydraulic medium may carry particulate contaminants and operates under medium pressure conditions. The CXIBXFN offers a free flow from port 2 to port 1 while blocking the flow in the reverse direction, making it an effective solution for circuit protection and correction in systems with incorrectly drilled manifolds. The valve features Sun Hydraulics' floating style construction, which helps to prevent binding of internal components that might occur due to over-torquing during installation or due to variations in cavity or cartridge machining. This design enhancement ensures consistent performance and longevity of the valve under operational stresses. Specifications include a maximum operating pressure of 3000 psi (210 bar) and a flow capacity of up to 120 gpm (480 L/min), making it suitable for a wide range of hydraulic applications. The CXIBXFN also boasts extremely low leakage rates, with maximum valve leakage specified at less than one drop per minute (0.07 cc/min), ensuring efficiency and minimal fluid loss during operation. The physical attributes include a valve hex size of 1-5/8 inches (41.3 mm) and an installation torque requirement between 350 - 375 lbf\u00b7ft (474 - 508 Nm). The model weighs approximately 2.10 lbs (0.95 kg), facilitating easier handling and installation without compromising on robustness or durability. For maintenance, the CXIBXFN is compatible with Viton seal kits specified as part number: 990018006, ensuring long-term reliability and ease of serviceability in various hydraulic setups.

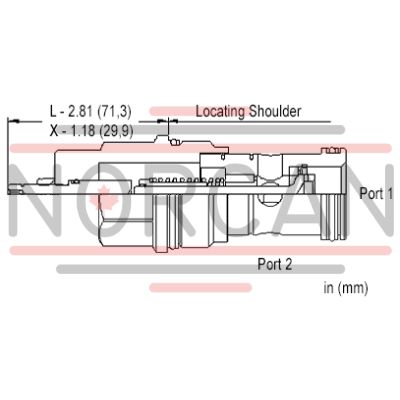

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
