SUN HYDRAULICS
CXIBXZN
$294.66 USD
- SUN HYDRAULICS
- Material:CXIBXZN
- Model:CXIB-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

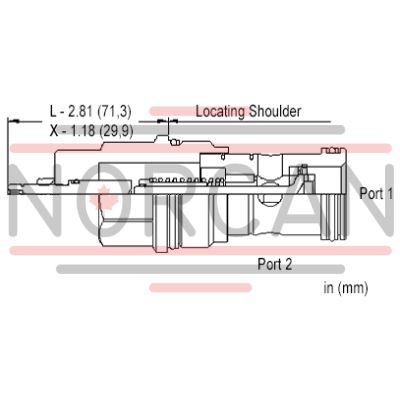

The Sun Hydraulics CXIBXZN (CXIBXZN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a sidetonose configuration that permits free flow from the inlet port 2 to the outlet port 1, while effectively blocking flow in the reverse direction. The CXIBXZN is particularly suitable for medium pressure systems where contamination might be an issue, as it incorporates a Delrin seat known for its compatibility with dirty environments. With a maximum operating pressure of 3000 psi (210 bar) and a flow capacity of up to 120 gpm (480 L/min), this valve is capable of handling significant hydraulic demands. It ensures extremely low leakage, with a maximum rate of less than one drop per minute (0.07 cc/min), thanks to its precision-engineered design. The valve's construction includes Sun\u2019s floating style setup which minimizes internal parts misalignment and potential binding caused by installation torque or machining variations of the cavity/cartridge. The CXIBXZN uses the T18A cavity and is part of Sun Hydraulics' Series 4. Installation requires specific torque settings ranging between 350 \u2013 375 lbf\u00b7ft (474 \u2013 508 Nm), and it features a hex size of 1-5/8 inches (41.3 mm). Weighing at about 2.10 lbs (0.95 kg), this model ensures durability and ease of maintenance with available Viton seal kits and cartridges, enhancing its overall reliability and performance in various hydraulic applications.
The Sun Hydraulics CXIBXZN (CXIBXZN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a sidetonose configuration that permits free flow from the inlet port 2 to the outlet port 1, while effectively blocking flow in the reverse direction. The CXIBXZN is particularly suitable for medium pressure systems where contamination might be an issue, as it incorporates a Delrin seat known for its compatibility with dirty environments. With a maximum operating pressure of 3000 psi (210 bar) and a flow capacity of up to 120 gpm (480 L/min), this valve is capable of handling significant hydraulic demands. It ensures extremely low leakage, with a maximum rate of less than one drop per minute (0.07 cc/min), thanks to its precision-engineered design. The valve's construction includes Sun\u2019s floating style setup which minimizes internal parts misalignment and potential binding caused by installation torque or machining variations of the cavity/cartridge. The CXIBXZN uses the T18A cavity and is part of Sun Hydraulics' Series 4. Installation requires specific torque settings ranging between 350 \u2013 375 lbf\u00b7ft (474 \u2013 508 Nm), and it features a hex size of 1-5/8 inches (41.3 mm). Weighing at about 2.10 lbs (0.95 kg), this model ensures durability and ease of maintenance with available Viton seal kits and cartridges, enhancing its overall reliability and performance in various hydraulic applications.
Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
