SUN HYDRAULICS
CXIBXZV
$301.12 USD
- SUN HYDRAULICS
- Material:CXIBXZV
- Model:CXIB-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIBXZV (CXIBXZV) is a robust check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This valve features a free-flow design from its inlet port 2 to outlet port 1, while effectively blocking flow in the reverse direction. The Delrin seat within the valve makes it particularly suitable for medium pressure systems that may contain some level of particulates, though it is not intended for high flow or temperature applications. The CXIBXZV operates within a T18A cavity and belongs to the Series 4 lineup, showcasing a maximum operating capacity of 120 gpm (480 L/min) and can withstand pressures up to 3000 psi (210 bar). One of its key features includes an extremely low leakage rate, capped at less than 1 drop per minute (0.07 cc/min), ensuring efficiency and minimal fluid loss in operation. Designed with Sun's floating style construction, the CXIBXZV minimizes risks associated with internal parts binding which can occur due to over-torquing during installation or variations in cavity/cartridge machining. This check valve is also noted for its utility in correcting manifold drilling inaccuracies in existing circuits, providing a practical solution without the need for extensive system modifications. For installation, this model requires a hex size of 1-5/8 inches (41.3 mm) and an installation torque between 350 - 375 lbf.ft (474 - 508 Nm). Weighing at approximately 2.10 lbs (0.95 kg), it is both compact and manageable for integration into various hydraulic setups. The use of Viton seals further enhances its durability and compatibility with different hydraulic fluids under varying operational conditions.
The Sun Hydraulics CXIBXZV (CXIBXZV) is a robust check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This valve features a free-flow design from its inlet port 2 to outlet port 1, while effectively blocking flow in the reverse direction. The Delrin seat within the valve makes it particularly suitable for medium pressure systems that may contain some level of particulates, though it is not intended for high flow or temperature applications. The CXIBXZV operates within a T18A cavity and belongs to the Series 4 lineup, showcasing a maximum operating capacity of 120 gpm (480 L/min) and can withstand pressures up to 3000 psi (210 bar). One of its key features includes an extremely low leakage rate, capped at less than 1 drop per minute (0.07 cc/min), ensuring efficiency and minimal fluid loss in operation. Designed with Sun's floating style construction, the CXIBXZV minimizes risks associated with internal parts binding which can occur due to over-torquing during installation or variations in cavity/cartridge machining. This check valve is also noted for its utility in correcting manifold drilling inaccuracies in existing circuits, providing a practical solution without the need for extensive system modifications. For installation, this model requires a hex size of 1-5/8 inches (41.3 mm) and an installation torque between 350 - 375 lbf.ft (474 - 508 Nm). Weighing at approximately 2.10 lbs (0.95 kg), it is both compact and manageable for integration into various hydraulic setups. The use of Viton seals further enhances its durability and compatibility with different hydraulic fluids under varying operational conditions.

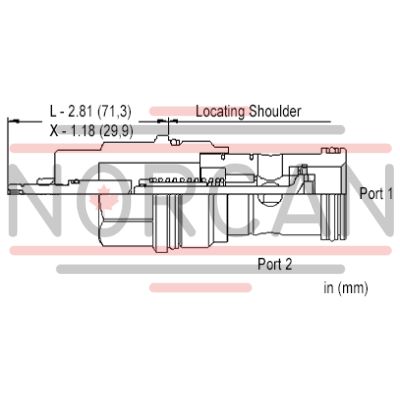

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
