SUN HYDRAULICS
CXIDLAV
$177.61 USD
- SUN HYDRAULICS
- Material:CXIDLAV
- Model:CXID-LAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIDLAV (CXIDLAV) is a high-performance check valve designed to allow free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. This model is particularly useful for correcting existing circuits with incorrect manifold drillings, acting as a circuit saver without the need for extensive modifications. The CXIDLAV model, housed within a T18A cavity and belonging to Series 4, supports a maximum flow capacity of 120 gpm (480 L/min) and can handle a maximum operating pressure of 5000 psi (350 bar). One of the standout features of this valve is its extremely low leakage rate, which does not exceed 1 drop per minute (0.07 cc/min), ensuring efficient and reliable operation in critical applications. The valve's construction incorporates Sun's floating style design which minimizes internal part binding that can occur due to excessive installation torque or variations in cavity/cartridge machining. The CXIDLAV model requires an installation torque between 350 - 375 lbf\u00b7ft (474 - 508 Nm) and has a hex size of 1-5/8 inches (41.3 mm). Weighing at approximately 2.10 lbs (0.95 kg), it is robust yet manageable in size for ease of installation and maintenance. The valve is compatible with Viton seals, specifically using the seal kit cartridge number 990018006, ensuring durability and resistance against various fluids and environmental conditions. Overall, the Sun Hydraulics CXIDLAV check valve is an essential component for hydraulic systems requiring precise flow control and reliability where directional flow correction is needed without compromising on performance or system integrity.
The Sun Hydraulics CXIDLAV (CXIDLAV) is a high-performance check valve designed to allow free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. This model is particularly useful for correcting existing circuits with incorrect manifold drillings, acting as a circuit saver without the need for extensive modifications. The CXIDLAV model, housed within a T18A cavity and belonging to Series 4, supports a maximum flow capacity of 120 gpm (480 L/min) and can handle a maximum operating pressure of 5000 psi (350 bar). One of the standout features of this valve is its extremely low leakage rate, which does not exceed 1 drop per minute (0.07 cc/min), ensuring efficient and reliable operation in critical applications. The valve's construction incorporates Sun's floating style design which minimizes internal part binding that can occur due to excessive installation torque or variations in cavity/cartridge machining. The CXIDLAV model requires an installation torque between 350 - 375 lbf\u00b7ft (474 - 508 Nm) and has a hex size of 1-5/8 inches (41.3 mm). Weighing at approximately 2.10 lbs (0.95 kg), it is robust yet manageable in size for ease of installation and maintenance. The valve is compatible with Viton seals, specifically using the seal kit cartridge number 990018006, ensuring durability and resistance against various fluids and environmental conditions. Overall, the Sun Hydraulics CXIDLAV check valve is an essential component for hydraulic systems requiring precise flow control and reliability where directional flow correction is needed without compromising on performance or system integrity.

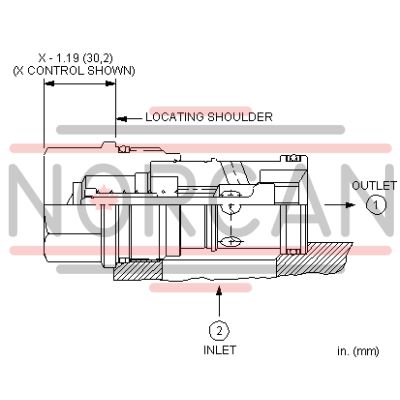

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
