SUN HYDRAULICS
CXIDLBN
$170.16 USD
- SUN HYDRAULICS
- Material:CXIDLBN
- Model:CXID-LBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIDLBN (CXIDLBN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model facilitates free flow from inlet port 2 to outlet port 1 while effectively blocking flow in the reverse direction, making it an essential component for systems where backflow prevention is critical. With a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 120 gpm (480 L/min), the CXIDLBN is suited to handle demanding hydraulic circuits. The valve features Sun Hydraulics' distinctive floating style construction which helps minimize the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design ensures consistent performance and longevity even under stringent operational conditions. The CXIDLBN exhibits extremely low leakage rates, maintaining less than 1 drop per minute (0.07 cc/min), which underscores its efficiency and precision in maintaining system integrity. This model is housed within a T18A cavity and conforms to Series 4 specifications. It requires an installation torque between 350 - 375 lbf ft (474 - 508 Nm) and has a hex size of 1 5/8 inches (41.3 mm). Weighing at approximately 2.10 lbs (0.95 kg), the CXIDLBN integrates seamlessly into existing circuits, particularly where manifold drillings may be incorrect, thus serving as a circuit saver without extensive system alterations. The valve's robust construction and operational characteristics make it an ideal choice for various hydraulic applications needing reliable check valves with high capacity and minimal leakage.
The Sun Hydraulics CXIDLBN (CXIDLBN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model facilitates free flow from inlet port 2 to outlet port 1 while effectively blocking flow in the reverse direction, making it an essential component for systems where backflow prevention is critical. With a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 120 gpm (480 L/min), the CXIDLBN is suited to handle demanding hydraulic circuits. The valve features Sun Hydraulics' distinctive floating style construction which helps minimize the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design ensures consistent performance and longevity even under stringent operational conditions. The CXIDLBN exhibits extremely low leakage rates, maintaining less than 1 drop per minute (0.07 cc/min), which underscores its efficiency and precision in maintaining system integrity. This model is housed within a T18A cavity and conforms to Series 4 specifications. It requires an installation torque between 350 - 375 lbf ft (474 - 508 Nm) and has a hex size of 1 5/8 inches (41.3 mm). Weighing at approximately 2.10 lbs (0.95 kg), the CXIDLBN integrates seamlessly into existing circuits, particularly where manifold drillings may be incorrect, thus serving as a circuit saver without extensive system alterations. The valve's robust construction and operational characteristics make it an ideal choice for various hydraulic applications needing reliable check valves with high capacity and minimal leakage.

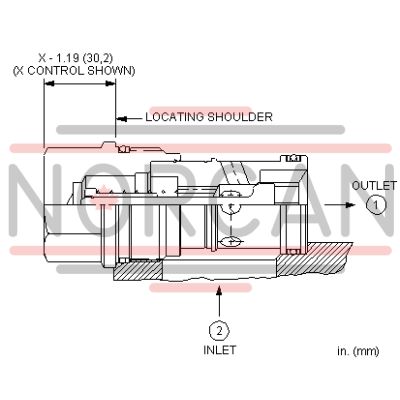

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
