SUN HYDRAULICS
CXIDLDV
$176.62 USD
- SUN HYDRAULICS
- Material:CXIDLDV
- Model:CXID-LDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIDLDV (CXIDLDV) is a high-performance check valve designed for hydraulic circuits requiring reliable, unidirectional flow control. This model is part of the T18A series and features a two-port configuration that supports free flow from port 2 to port 1 while blocking reverse flow, making it essential for systems where correct manifold drilling is crucial. Its design allows for about 30% reduced capacity compared to models with a nose-to-side flow path, yet it still offers substantial throughput with a capacity of up to 120 gpm (480 L/min). The CXIDLDV can handle maximum operating pressures up to 5000 psi (350 bar) at both ports, ensuring robust performance even under high pressure conditions. It boasts an exceptionally low leakage rate of less than one drop per minute (0.07 cc/min), which is critical for maintaining system efficiency and preventing fluid loss. The check valve incorporates Sun's floating style construction which minimizes the risk of internal parts binding due to installation torque or variations in cavity/cartridge machining. For installation, the valve requires a hex size of 1-5/8 in. (41.3 mm) and an installation torque between 350 - 375 lbf.ft (474 - 508 Nm). It weighs approximately 2.10 lb (0.95 kg), making it relatively lightweight yet durable enough for demanding applications. The model also uses Viton seals for enhanced temperature and chemical resistance, ensuring long-term reliability and performance in various operating environments.
The Sun Hydraulics CXIDLDV (CXIDLDV) is a high-performance check valve designed for hydraulic circuits requiring reliable, unidirectional flow control. This model is part of the T18A series and features a two-port configuration that supports free flow from port 2 to port 1 while blocking reverse flow, making it essential for systems where correct manifold drilling is crucial. Its design allows for about 30% reduced capacity compared to models with a nose-to-side flow path, yet it still offers substantial throughput with a capacity of up to 120 gpm (480 L/min). The CXIDLDV can handle maximum operating pressures up to 5000 psi (350 bar) at both ports, ensuring robust performance even under high pressure conditions. It boasts an exceptionally low leakage rate of less than one drop per minute (0.07 cc/min), which is critical for maintaining system efficiency and preventing fluid loss. The check valve incorporates Sun's floating style construction which minimizes the risk of internal parts binding due to installation torque or variations in cavity/cartridge machining. For installation, the valve requires a hex size of 1-5/8 in. (41.3 mm) and an installation torque between 350 - 375 lbf.ft (474 - 508 Nm). It weighs approximately 2.10 lb (0.95 kg), making it relatively lightweight yet durable enough for demanding applications. The model also uses Viton seals for enhanced temperature and chemical resistance, ensuring long-term reliability and performance in various operating environments.

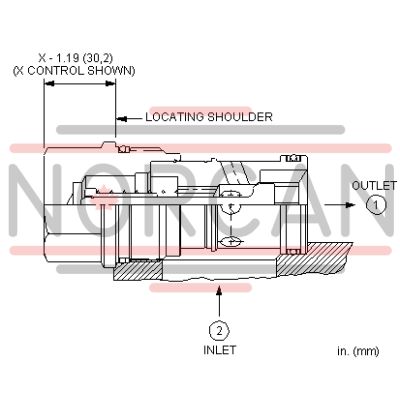

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
