SUN HYDRAULICS
CXIDLEN
$168.18 USD
- SUN HYDRAULICS
- Material:CXIDLEN
- Model:CXID-LEN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIDLEN (CXIDLEN) is a high-performance hydraulic check valve designed for industrial applications requiring reliable one-way flow control. The CXIDLEN model features a sidetoside check configuration that allows free flow from port 2 to port 1 while blocking flow in the reverse direction, making it an essential component for systems where manifold drillings may be incorrect. This valve is housed in a T18A cavity and belongs to the Series 4, ensuring compatibility with standard setups in various hydraulic systems. With a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 120 gpm (480 L/min), the CXIDLEN is suitable for high-pressure environments. One of its key attributes is the extremely low leakage rate, which does not exceed 1 drop per minute (0.07 cc/min), thereby minimizing fluid loss and maintaining system efficiency. The valve's construction incorporates Sun\u2019s floating style design, which reduces the risk of internal parts binding due to over-torqueing during installation or variations in cavity/cartridge machining. Additionally, the CXIDLEN model can be installed with a torque ranging between 350-375 lbf\u00b7ft (474-508 Nm) and has a compact weight of approximately 2.10 lbs (0.95 kg). It also supports Viton seals through the seal kit/cartridge option number 990018006, enhancing its durability and performance under various operating conditions. This model is specifically engineered to address and correct hydraulic circuit challenges effectively, ensuring robust performance and reliability in critical applications.
The Sun Hydraulics CXIDLEN (CXIDLEN) is a high-performance hydraulic check valve designed for industrial applications requiring reliable one-way flow control. The CXIDLEN model features a sidetoside check configuration that allows free flow from port 2 to port 1 while blocking flow in the reverse direction, making it an essential component for systems where manifold drillings may be incorrect. This valve is housed in a T18A cavity and belongs to the Series 4, ensuring compatibility with standard setups in various hydraulic systems. With a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 120 gpm (480 L/min), the CXIDLEN is suitable for high-pressure environments. One of its key attributes is the extremely low leakage rate, which does not exceed 1 drop per minute (0.07 cc/min), thereby minimizing fluid loss and maintaining system efficiency. The valve's construction incorporates Sun\u2019s floating style design, which reduces the risk of internal parts binding due to over-torqueing during installation or variations in cavity/cartridge machining. Additionally, the CXIDLEN model can be installed with a torque ranging between 350-375 lbf\u00b7ft (474-508 Nm) and has a compact weight of approximately 2.10 lbs (0.95 kg). It also supports Viton seals through the seal kit/cartridge option number 990018006, enhancing its durability and performance under various operating conditions. This model is specifically engineered to address and correct hydraulic circuit challenges effectively, ensuring robust performance and reliability in critical applications.

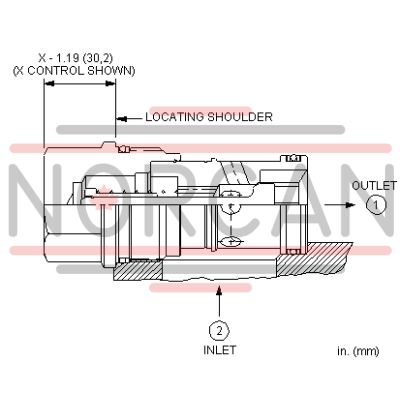

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
