SUN HYDRAULICS
CXIDLEV
$174.63 USD
- SUN HYDRAULICS
- Material:CXIDLEV
- Model:CXID-LEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIDLEV (CXIDLEV) is a high-performance check valve designed for hydraulic circuits requiring reliable, one-way flow control. This model is part of Sun Hydraulics' T18A cavity series and is built to accommodate a maximum flow rate of 120 gpm (480 L/min). It supports pressures up to 5000 psi (350 bar), ensuring robust performance in demanding applications. The CXIDLEV features a sidetonose check configuration, which typically offers around 30% less capacity compared to the nosetoside models but is essential for correcting manifold drillings in existing systems. This valve is engineered with Sun's floating style construction, which significantly reduces the risk of internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. It has an exceptionally low leakage rate, not exceeding 1 drop per minute (0.07 cc/min), making it ideal for systems where minimal fluid loss is critical. The CXIDLEV can withstand installation torques between 350 and 375 lbf\u00b7ft (474 \u2013 508 Nm) and has a hex size of 1-5/8 inches (41.3 mm). Weighing only 2.10 lbs (0.95 kg), it integrates seamlessly into various hydraulic setups without adding significant weight or bulk. The valve also uses Viton seals for enhanced durability and chemical resistance, suitable for various hydraulic fluids and operating conditions. This model is an excellent choice for enhancing system efficiency and reliability where incorrect manifold configurations need correction without compromising on performance or leakage standards.
The Sun Hydraulics CXIDLEV (CXIDLEV) is a high-performance check valve designed for hydraulic circuits requiring reliable, one-way flow control. This model is part of Sun Hydraulics' T18A cavity series and is built to accommodate a maximum flow rate of 120 gpm (480 L/min). It supports pressures up to 5000 psi (350 bar), ensuring robust performance in demanding applications. The CXIDLEV features a sidetonose check configuration, which typically offers around 30% less capacity compared to the nosetoside models but is essential for correcting manifold drillings in existing systems. This valve is engineered with Sun's floating style construction, which significantly reduces the risk of internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. It has an exceptionally low leakage rate, not exceeding 1 drop per minute (0.07 cc/min), making it ideal for systems where minimal fluid loss is critical. The CXIDLEV can withstand installation torques between 350 and 375 lbf\u00b7ft (474 \u2013 508 Nm) and has a hex size of 1-5/8 inches (41.3 mm). Weighing only 2.10 lbs (0.95 kg), it integrates seamlessly into various hydraulic setups without adding significant weight or bulk. The valve also uses Viton seals for enhanced durability and chemical resistance, suitable for various hydraulic fluids and operating conditions. This model is an excellent choice for enhancing system efficiency and reliability where incorrect manifold configurations need correction without compromising on performance or leakage standards.

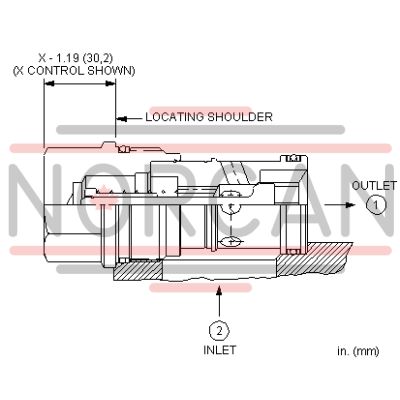

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
