SUN HYDRAULICS
CXIDLZV
$178.60 USD
- SUN HYDRAULICS
- Material:CXIDLZV
- Model:CXID-LZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIDLZV (CXIDLZV) is a high-performance hydraulic check valve designed for efficient fluid control in various hydraulic systems. This model features a free flow from the inlet port 2 to the outlet port 1 and blocks the flow in the reverse direction, making it an essential component for systems requiring one-way flow. The CXIDLZV operates under a maximum operating pressure of 5000 psi (350 bar) and can handle a flow capacity up to 120 gpm (480 L/min), ensuring robust performance in demanding applications. Constructed with Sun's floating style design, the CXIDLZV minimizes potential internal parts binding, which could be caused by excessive installation torque or variations in cavity/cartridge machining. This design consideration enhances the valve's reliability and longevity. Additionally, it features extremely low leakage rates, with maximum leakage not exceeding 1 drop per minute (0.07 cc/min), which is critical for maintaining system efficiency and preventing fluid loss. The valve is designed to fit in a T18A cavity and requires an installation torque between 350 \u2013 375 lbf\u00b7ft (474 \u2013 508 Nm). Its compact size includes a hex size of 1 5/8 in. (41.3 mm) and weighs approximately 2.10 lb (0.95 kg). For maintenance or repairs, it utilizes Viton seals, specified under kit number: 990018006. This model is particularly useful as a circuit saver in systems where manifold drillings might be incorrect or where modifications to existing circuits are needed without extensive redesigns or replacements. Its robust construction and precise engineering make it suitable for various applications requiring reliable check valve functionality under high pressure conditions.
The Sun Hydraulics CXIDLZV (CXIDLZV) is a high-performance hydraulic check valve designed for efficient fluid control in various hydraulic systems. This model features a free flow from the inlet port 2 to the outlet port 1 and blocks the flow in the reverse direction, making it an essential component for systems requiring one-way flow. The CXIDLZV operates under a maximum operating pressure of 5000 psi (350 bar) and can handle a flow capacity up to 120 gpm (480 L/min), ensuring robust performance in demanding applications. Constructed with Sun's floating style design, the CXIDLZV minimizes potential internal parts binding, which could be caused by excessive installation torque or variations in cavity/cartridge machining. This design consideration enhances the valve's reliability and longevity. Additionally, it features extremely low leakage rates, with maximum leakage not exceeding 1 drop per minute (0.07 cc/min), which is critical for maintaining system efficiency and preventing fluid loss. The valve is designed to fit in a T18A cavity and requires an installation torque between 350 \u2013 375 lbf\u00b7ft (474 \u2013 508 Nm). Its compact size includes a hex size of 1 5/8 in. (41.3 mm) and weighs approximately 2.10 lb (0.95 kg). For maintenance or repairs, it utilizes Viton seals, specified under kit number: 990018006. This model is particularly useful as a circuit saver in systems where manifold drillings might be incorrect or where modifications to existing circuits are needed without extensive redesigns or replacements. Its robust construction and precise engineering make it suitable for various applications requiring reliable check valve functionality under high pressure conditions.

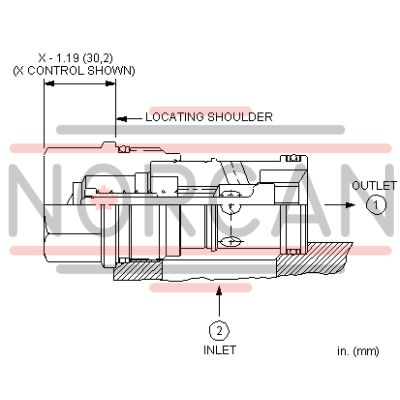

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
