SUN HYDRAULICS
CXIDXBV
$168.67 USD
- SUN HYDRAULICS
- Material:CXIDXBV
- Model:CXID-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIDXBV (CXIDXBV) is a precision-engineered check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This model features a sidetonose check configuration, allowing free flow from inlet port 2 to outlet port 1 while blocking reverse flow. It is specifically crafted to fit the T18A cavity and adheres to the Series 4 specifications set by Sun Hydraulics. With a maximum operating pressure of 5000 psi (350 bar) and a robust capacity of up to 120 gpm (480 L/min), the CXIDXBV valve is suited for high-pressure applications. The valve's design minimizes leakage, maintaining tight control with less than one drop per minute (0.07 cc/min) leakage rate, which ensures efficiency and reduces waste in hydraulic systems. The construction incorporates Sun's floating style design which aids in preventing internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the durability and reliability of the valve under varied operational conditions. The CXIDXBV model requires an installation torque between 350 \u2013 375 lbf.ft (474 \u2013 508 Nm) and has a hex size of 1 5/8 inches (41.3 mm). Weighing at approximately 2.10 lbs (0.95 kg), it is relatively lightweight yet sturdy enough for both mobile and industrial applications. Additionally, this model can be equipped with a Viton seal kit (990018006), ensuring compatibility with a wide range of fluids and further enhancing its operational longevity and resilience against harsh conditions. This makes the CXIDXBV an ideal choice for systems where precision and reliability are paramount.
The Sun Hydraulics CXIDXBV (CXIDXBV) is a precision-engineered check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This model features a sidetonose check configuration, allowing free flow from inlet port 2 to outlet port 1 while blocking reverse flow. It is specifically crafted to fit the T18A cavity and adheres to the Series 4 specifications set by Sun Hydraulics. With a maximum operating pressure of 5000 psi (350 bar) and a robust capacity of up to 120 gpm (480 L/min), the CXIDXBV valve is suited for high-pressure applications. The valve's design minimizes leakage, maintaining tight control with less than one drop per minute (0.07 cc/min) leakage rate, which ensures efficiency and reduces waste in hydraulic systems. The construction incorporates Sun's floating style design which aids in preventing internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the durability and reliability of the valve under varied operational conditions. The CXIDXBV model requires an installation torque between 350 \u2013 375 lbf.ft (474 \u2013 508 Nm) and has a hex size of 1 5/8 inches (41.3 mm). Weighing at approximately 2.10 lbs (0.95 kg), it is relatively lightweight yet sturdy enough for both mobile and industrial applications. Additionally, this model can be equipped with a Viton seal kit (990018006), ensuring compatibility with a wide range of fluids and further enhancing its operational longevity and resilience against harsh conditions. This makes the CXIDXBV an ideal choice for systems where precision and reliability are paramount.

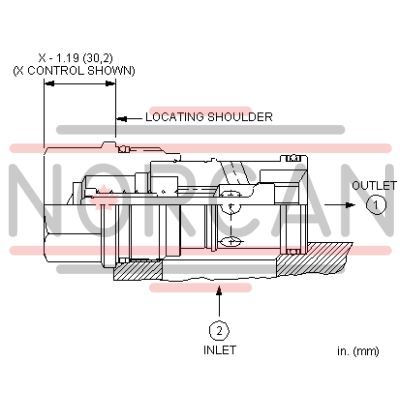

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
