SUN HYDRAULICS
CXIDXDN
$162.22 USD
- SUN HYDRAULICS
- Material:CXIDXDN
- Model:CXID-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIDXDN (CXIDXDN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model is part of the T18A Series 4 and features a two-port, side-to-nose configuration which allows free flow from inlet port 2 to outlet port 1 while blocking flow in the reverse direction. Such design makes it suitable for applications where manifold drillings might be incorrect, acting as a circuit saver by accommodating around 30% less capacity compared to models with a nose-to-side flow path. Constructed with Sun's floating style construction, the CXIDXDN minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. It supports a maximum operating pressure of 5000 psi (350 bar) at both ports and can handle a flow capacity up to 120 gpm (480 L/min). The check valve ensures extremely low leakage rates, with maximum leakage not exceeding one drop per minute (0.07 cc/min), making it ideal for applications demanding high precision and minimal fluid loss. The robust design includes a valve hex size of 1-5/8 inches (41.3 mm) and requires an installation torque between 350 \u2013 375 lbf\u00b7ft (474 \u2013 508 Nm). Weighing in at approximately 2.10 lbs (0.95 kg), this model is both compact and durable. The valve is compatible with Viton seal kits/cartridges, ensuring high resistance to heat and chemicals, thereby extending the operational lifespan under diverse conditions. This makes the CXIDXDN an excellent choice for hydraulic circuits needing dependable backflow prevention with minimal maintenance requirements.
The Sun Hydraulics CXIDXDN (CXIDXDN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model is part of the T18A Series 4 and features a two-port, side-to-nose configuration which allows free flow from inlet port 2 to outlet port 1 while blocking flow in the reverse direction. Such design makes it suitable for applications where manifold drillings might be incorrect, acting as a circuit saver by accommodating around 30% less capacity compared to models with a nose-to-side flow path. Constructed with Sun's floating style construction, the CXIDXDN minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. It supports a maximum operating pressure of 5000 psi (350 bar) at both ports and can handle a flow capacity up to 120 gpm (480 L/min). The check valve ensures extremely low leakage rates, with maximum leakage not exceeding one drop per minute (0.07 cc/min), making it ideal for applications demanding high precision and minimal fluid loss. The robust design includes a valve hex size of 1-5/8 inches (41.3 mm) and requires an installation torque between 350 \u2013 375 lbf\u00b7ft (474 \u2013 508 Nm). Weighing in at approximately 2.10 lbs (0.95 kg), this model is both compact and durable. The valve is compatible with Viton seal kits/cartridges, ensuring high resistance to heat and chemicals, thereby extending the operational lifespan under diverse conditions. This makes the CXIDXDN an excellent choice for hydraulic circuits needing dependable backflow prevention with minimal maintenance requirements.

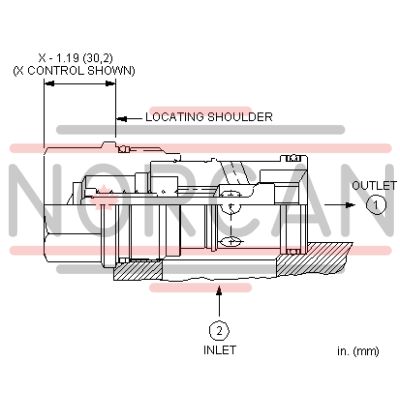

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
