SUN HYDRAULICS
CXIDXFN
$162.22 USD
- SUN HYDRAULICS
- Material:CXIDXFN
- Model:CXID-XFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIDXFN (CXIDXFN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model utilizes a freeflow, side-to-nose check configuration that allows free flow from inlet port 2 to outlet port 1, while effectively blocking flow in the reverse direction. The CXIDXFN is particularly useful as a circuit saver in systems where manifold drillings might be incorrect, offering a solution without the need for extensive rework. Constructed with Sun's floating style design, the CXIDXFN minimizes potential internal part binding that can occur due to over-torquing during installation or variations in cavity/cartridge machining. This design ensures consistent performance and longevity even under challenging conditions. The valve supports a maximum operating pressure of 5000 psi (350 bar) at both ports and has an impressive capacity of up to 120 gpm (480 L/min), making it suitable for various high-flow applications. Leakage is minimal with this model, maintaining less than 1 drop per minute (0.07 cc/min), which underscores its efficiency and reliability in maintaining system integrity. The valve's robust construction includes a hex size of 1 5/8 inches (41.3 mm) and requires an installation torque between 350 - 375 lbf.ft (474 - 508 Nm). Weighing at approximately 2.10 lb (0.95 kg), the CXIDXFN is both compact and durable, engineered to meet rigorous industrial standards and ensure optimal performance in diverse operating environments.
The Sun Hydraulics CXIDXFN (CXIDXFN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model utilizes a freeflow, side-to-nose check configuration that allows free flow from inlet port 2 to outlet port 1, while effectively blocking flow in the reverse direction. The CXIDXFN is particularly useful as a circuit saver in systems where manifold drillings might be incorrect, offering a solution without the need for extensive rework. Constructed with Sun's floating style design, the CXIDXFN minimizes potential internal part binding that can occur due to over-torquing during installation or variations in cavity/cartridge machining. This design ensures consistent performance and longevity even under challenging conditions. The valve supports a maximum operating pressure of 5000 psi (350 bar) at both ports and has an impressive capacity of up to 120 gpm (480 L/min), making it suitable for various high-flow applications. Leakage is minimal with this model, maintaining less than 1 drop per minute (0.07 cc/min), which underscores its efficiency and reliability in maintaining system integrity. The valve's robust construction includes a hex size of 1 5/8 inches (41.3 mm) and requires an installation torque between 350 - 375 lbf.ft (474 - 508 Nm). Weighing at approximately 2.10 lb (0.95 kg), the CXIDXFN is both compact and durable, engineered to meet rigorous industrial standards and ensure optimal performance in diverse operating environments.

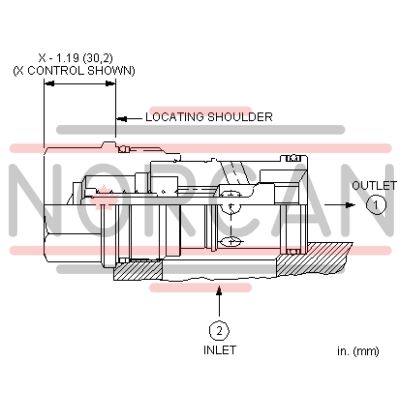

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
