SUN HYDRAULICS
CXIDXFV
$168.67 USD
- SUN HYDRAULICS
- Material:CXIDXFV
- Model:CXID-XFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIDXFV (CXIDXFV) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a freeflow, side-to-nose configuration that permits free flow from the inlet port 2 to the outlet port 1 while blocking flow in the reverse direction. The CXIDXFV is particularly useful as a circuit saver in scenarios where manifold drillings are incorrect, allowing for corrections without extensive system modifications. With a capacity of 120 gallons per minute (480 liters per minute), this valve can handle substantial flow rates, making it suitable for a variety of applications across different hydraulic systems. It operates under a maximum pressure of 5000 psi (350 bar), ensuring robust performance even under high-pressure conditions. The valve's leakage rate is impressively low, with a maximum of less than one drop per minute (0.07 cc/min), which contributes to maintaining system efficiency and reducing fluid loss. The construction of the CXIDXFV incorporates Sun's floating style design which minimizes the risk of internal parts binding. This design feature is crucial for maintaining operational reliability and longevity, especially in systems where installation torque and cavity/cartridge machining variations might otherwise pose challenges. For installation, the valve requires a hex size of 1 5/8 inches (41.3 mm) and an installation torque between 350 - 375 lbf.ft (474 - 508 Nm). Weighing just over two pounds (0.95 kg), it offers a compact yet sturdy solution for hydraulic check applications. The use of Viton seals ensures compatibility with a wide range of hydraulic fluids and enhances the durability under varying environmental conditions. Overall, the Sun Hydraulics CXIDXFV check valve provides an efficient solution for managing directional flow in hydraulic systems while ensuring minimal leakage and maximum durability.
The Sun Hydraulics CXIDXFV (CXIDXFV) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a freeflow, side-to-nose configuration that permits free flow from the inlet port 2 to the outlet port 1 while blocking flow in the reverse direction. The CXIDXFV is particularly useful as a circuit saver in scenarios where manifold drillings are incorrect, allowing for corrections without extensive system modifications. With a capacity of 120 gallons per minute (480 liters per minute), this valve can handle substantial flow rates, making it suitable for a variety of applications across different hydraulic systems. It operates under a maximum pressure of 5000 psi (350 bar), ensuring robust performance even under high-pressure conditions. The valve's leakage rate is impressively low, with a maximum of less than one drop per minute (0.07 cc/min), which contributes to maintaining system efficiency and reducing fluid loss. The construction of the CXIDXFV incorporates Sun's floating style design which minimizes the risk of internal parts binding. This design feature is crucial for maintaining operational reliability and longevity, especially in systems where installation torque and cavity/cartridge machining variations might otherwise pose challenges. For installation, the valve requires a hex size of 1 5/8 inches (41.3 mm) and an installation torque between 350 - 375 lbf.ft (474 - 508 Nm). Weighing just over two pounds (0.95 kg), it offers a compact yet sturdy solution for hydraulic check applications. The use of Viton seals ensures compatibility with a wide range of hydraulic fluids and enhances the durability under varying environmental conditions. Overall, the Sun Hydraulics CXIDXFV check valve provides an efficient solution for managing directional flow in hydraulic systems while ensuring minimal leakage and maximum durability.

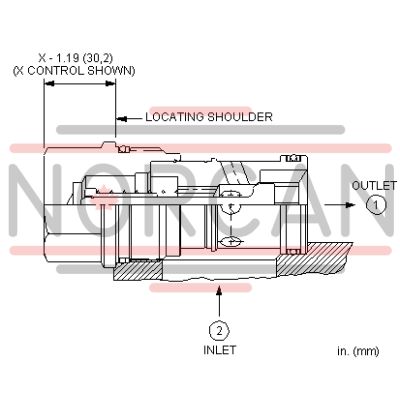

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
