SUN HYDRAULICS
CXIDXZN
$164.21 USD
- SUN HYDRAULICS
- Material:CXIDXZN
- Model:CXID-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIDXZN (CXIDXZN) is a high-performance check valve designed for hydraulic applications requiring reliable one-way flow and leakage control. This model, part of the T18A cavity series 4, stands out for its freeflow, side-to-nose functionality which allows free flow from inlet port 2 to outlet port 1 while blocking reverse flow. The CXIDXZN is engineered to fit into systems with incorrect manifold drillings, serving as a circuit saver by correcting these issues without needing extensive system redesigns. This valve supports a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of up to 120 gpm (480 L/min), making it suitable for a wide range of hydraulic pressures and volume requirements. It features extremely low leakage rates, with less than one drop per minute (0.07 cc/min), ensuring efficient operation even under stringent conditions. The valve\u2019s construction includes Sun\u2019s floating style design which minimizes internal part binding due to installation torque or cavity/cartridge machining variations. For installation, the CXIDXZN requires a hex size of 1-5/8 in. (41.3 mm) and an installation torque between 350 \u2013 375 lbf ft (474 \u2013 508 Nm). Weighing at approximately 2.10 lb (0.95 kg), it is robust yet relatively lightweight for easy integration into existing systems. Additionally, it utilizes Viton seals for enhanced durability and performance under varying conditions. This model is particularly effective in applications where space and correction of hydraulic circuit paths are critical without compromising on efficiency or reliability.
The Sun Hydraulics CXIDXZN (CXIDXZN) is a high-performance check valve designed for hydraulic applications requiring reliable one-way flow and leakage control. This model, part of the T18A cavity series 4, stands out for its freeflow, side-to-nose functionality which allows free flow from inlet port 2 to outlet port 1 while blocking reverse flow. The CXIDXZN is engineered to fit into systems with incorrect manifold drillings, serving as a circuit saver by correcting these issues without needing extensive system redesigns. This valve supports a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of up to 120 gpm (480 L/min), making it suitable for a wide range of hydraulic pressures and volume requirements. It features extremely low leakage rates, with less than one drop per minute (0.07 cc/min), ensuring efficient operation even under stringent conditions. The valve\u2019s construction includes Sun\u2019s floating style design which minimizes internal part binding due to installation torque or cavity/cartridge machining variations. For installation, the CXIDXZN requires a hex size of 1-5/8 in. (41.3 mm) and an installation torque between 350 \u2013 375 lbf ft (474 \u2013 508 Nm). Weighing at approximately 2.10 lb (0.95 kg), it is robust yet relatively lightweight for easy integration into existing systems. Additionally, it utilizes Viton seals for enhanced durability and performance under varying conditions. This model is particularly effective in applications where space and correction of hydraulic circuit paths are critical without compromising on efficiency or reliability.

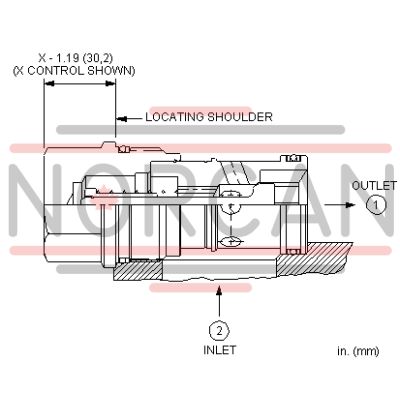

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
