SUN HYDRAULICS
CXIDXZV
$170.66 USD
- SUN HYDRAULICS
- Material:CXIDXZV
- Model:CXID-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIDXZV (CXIDXZV) is a highly efficient check valve designed for hydraulic applications where precision and reliability are paramount. This model is part of the T18A cavity series, with a frame size of 4, and is equipped to handle a maximum flow capacity of 120 gpm (480 L/min). It operates under a maximum pressure of 5000 psi (350 bar), making it suitable for high-pressure systems. The CXIDXZV features free flow from inlet port 2 to outlet port 1 while blocking flow in the opposite direction, which is crucial for applications requiring unidirectional flow control. This check valve boasts an exceptionally low leakage rate, with a maximum of less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and increased system efficiency. The construction includes Sun's floating style design which minimizes internal parts binding\u2014a common issue resulting from over-torquing during installation or variances in cavity/cartridge machining. This design enhances the longevity and reliability of the valve under various operational conditions. The unit's physical specifications include a hex size of 1-5/8 inches (41.3 mm) and an installation torque range between 350 - 375 lbf.ft (474 - 508 Nm). Weighing at approximately 2.10 lb (0.95 kg), it is robust yet compact enough for integration into various setups without requiring excessive space or causing significant alterations in system weight. Additionally, the CXIDXZV can be fitted with Viton seals (part number: 990018006), offering excellent resistance to high temperatures and chemical degradation, further enhancing its suitability across diverse operating environments where durability and tight sealing are critical.
The Sun Hydraulics CXIDXZV (CXIDXZV) is a highly efficient check valve designed for hydraulic applications where precision and reliability are paramount. This model is part of the T18A cavity series, with a frame size of 4, and is equipped to handle a maximum flow capacity of 120 gpm (480 L/min). It operates under a maximum pressure of 5000 psi (350 bar), making it suitable for high-pressure systems. The CXIDXZV features free flow from inlet port 2 to outlet port 1 while blocking flow in the opposite direction, which is crucial for applications requiring unidirectional flow control. This check valve boasts an exceptionally low leakage rate, with a maximum of less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and increased system efficiency. The construction includes Sun's floating style design which minimizes internal parts binding\u2014a common issue resulting from over-torquing during installation or variances in cavity/cartridge machining. This design enhances the longevity and reliability of the valve under various operational conditions. The unit's physical specifications include a hex size of 1-5/8 inches (41.3 mm) and an installation torque range between 350 - 375 lbf.ft (474 - 508 Nm). Weighing at approximately 2.10 lb (0.95 kg), it is robust yet compact enough for integration into various setups without requiring excessive space or causing significant alterations in system weight. Additionally, the CXIDXZV can be fitted with Viton seals (part number: 990018006), offering excellent resistance to high temperatures and chemical degradation, further enhancing its suitability across diverse operating environments where durability and tight sealing are critical.

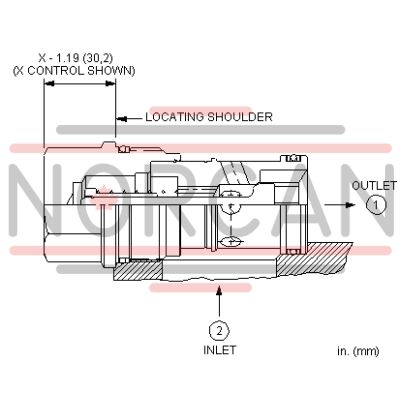

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
