SUN HYDRAULICS
CHECK CARTRIDGE
CXIEXCN
$193.20 USD
- SUN HYDRAULICS
- Material:CXIEXCN
- Model:CXIE-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIEXCN (CXIEXCN) is a high-performance hydraulic check valve designed for specialized applications requiring a two-port check valve functionality in a three-port cavity. The model features an innovative side-to-nose cheater configuration, allowing it to function effectively even when one of the ports is blocked, making it versatile for various hydraulic circuit designs. This valve is particularly beneficial in scenarios where an existing three-port cavity needs to be utilized without redesigning the entire system. With a capacity to handle up to 120 gallons per minute (480 L/min) and withstand maximum operating pressures of 5000 psi (350 bar), the CXIEXCN is built for demanding environments. It showcases exceptional leakage control, maintaining leakage at less than one drop per minute (0.07 cc/min), which ensures efficient and reliable operation in critical applications. The valve's construction includes Sun Hydraulics' floating style design which minimizes internal parts binding\u2014a common issue that can arise from excessive installation torque or variations in cavity/cartridge machining. This model is also equipped with corrosion-resistant features suitable for use in corrosive environments, although specific configurations like AP or LH should be referred to for detailed materials of construction. Dimensions include a hex size of 1 5/8 inches (41.3 mm) and an installation torque range of 350 - 375 lbf\u00b7ft (474 - 508 Nm), with the total weight of the valve being approximately 1.90 lbs (0.85 kg). The CXIEXCN uses Viton seals, ensuring durability and compatibility with various fluids and operational conditions. This combination of features makes the CXIEXCN an ideal choice for hydraulic systems requiring robust performance with minimal maintenance.
The Sun Hydraulics CXIEXCN (CXIEXCN) is a high-performance hydraulic check valve designed for specialized applications requiring a two-port check valve functionality in a three-port cavity. The model features an innovative side-to-nose cheater configuration, allowing it to function effectively even when one of the ports is blocked, making it versatile for various hydraulic circuit designs. This valve is particularly beneficial in scenarios where an existing three-port cavity needs to be utilized without redesigning the entire system. With a capacity to handle up to 120 gallons per minute (480 L/min) and withstand maximum operating pressures of 5000 psi (350 bar), the CXIEXCN is built for demanding environments. It showcases exceptional leakage control, maintaining leakage at less than one drop per minute (0.07 cc/min), which ensures efficient and reliable operation in critical applications. The valve's construction includes Sun Hydraulics' floating style design which minimizes internal parts binding\u2014a common issue that can arise from excessive installation torque or variations in cavity/cartridge machining. This model is also equipped with corrosion-resistant features suitable for use in corrosive environments, although specific configurations like AP or LH should be referred to for detailed materials of construction. Dimensions include a hex size of 1 5/8 inches (41.3 mm) and an installation torque range of 350 - 375 lbf\u00b7ft (474 - 508 Nm), with the total weight of the valve being approximately 1.90 lbs (0.85 kg). The CXIEXCN uses Viton seals, ensuring durability and compatibility with various fluids and operational conditions. This combination of features makes the CXIEXCN an ideal choice for hydraulic systems requiring robust performance with minimal maintenance.

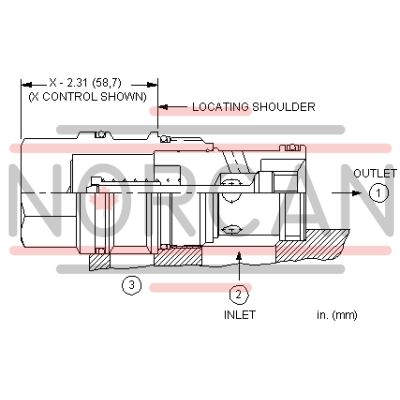

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-19A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 1.90 lb0,85 kg |
| Seal kit - Cartridge | Viton: 990-019-006 |
