SUN HYDRAULICS
CXIEXDN
$195.18 USD
- SUN HYDRAULICS
- Material:CXIEXDN
- Model:CXIE-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIEXDN (CXIEXDN) is a robust and versatile hydraulic check valve designed for high-performance applications requiring minimal leakage and high-pressure tolerance. This valve is specifically engineered to operate as a standard 2-port check valve within a 3-port cavity configuration, with port 3 effectively blocked off. This unique design allows for its use in existing three-port cavities where only a check function is needed without the need to alter the hydraulic system significantly. With a maximum operating pressure of 5000 psi (350 bar) at ports 1 and 2, the CXIEXDN can handle substantial hydraulic pressures, making it suitable for various industrial applications. The valve demonstrates exceptional performance in preventing fluid backflow, maintaining an extremely low leakage rate of less than one drop per minute (0.07 cc/min), thereby ensuring system integrity and efficiency. Constructed with corrosion-resistant materials, this cartridge valve is built to withstand corrosive environments, enhancing its durability and lifespan under challenging conditions. It also features Sun's floating style construction which helps minimize internal parts binding\u2014a common issue that can arise from excessive installation torque or variations in cavity/cartridge machining. The CXIEXDN fits into a T19A cavity and belongs to the Series 4 line of Sun Hydraulics' valves. It supports up to 120 gpm (480 L/min) capacity, catering to systems requiring high flow rates. Installation specifications include a valve hex size of 1-5/8 inches (41.3 mm) and an installation torque range of 350 - 375 lbf\u00b7ft (474 - 508 Nm). Weighing at approximately 1.90 lb (0.85 kg), this model integrates seamlessly into various setups without adding significant weight or complexity to the system architecture. Overall, the Sun Hydraulics CXIEXDN check valve is an efficient solution designed for simplicity and reliability in integrating into existing three-port systems while providing secure, leak-proof operation under high pressures.
The Sun Hydraulics CXIEXDN (CXIEXDN) is a robust and versatile hydraulic check valve designed for high-performance applications requiring minimal leakage and high-pressure tolerance. This valve is specifically engineered to operate as a standard 2-port check valve within a 3-port cavity configuration, with port 3 effectively blocked off. This unique design allows for its use in existing three-port cavities where only a check function is needed without the need to alter the hydraulic system significantly. With a maximum operating pressure of 5000 psi (350 bar) at ports 1 and 2, the CXIEXDN can handle substantial hydraulic pressures, making it suitable for various industrial applications. The valve demonstrates exceptional performance in preventing fluid backflow, maintaining an extremely low leakage rate of less than one drop per minute (0.07 cc/min), thereby ensuring system integrity and efficiency. Constructed with corrosion-resistant materials, this cartridge valve is built to withstand corrosive environments, enhancing its durability and lifespan under challenging conditions. It also features Sun's floating style construction which helps minimize internal parts binding\u2014a common issue that can arise from excessive installation torque or variations in cavity/cartridge machining. The CXIEXDN fits into a T19A cavity and belongs to the Series 4 line of Sun Hydraulics' valves. It supports up to 120 gpm (480 L/min) capacity, catering to systems requiring high flow rates. Installation specifications include a valve hex size of 1-5/8 inches (41.3 mm) and an installation torque range of 350 - 375 lbf\u00b7ft (474 - 508 Nm). Weighing at approximately 1.90 lb (0.85 kg), this model integrates seamlessly into various setups without adding significant weight or complexity to the system architecture. Overall, the Sun Hydraulics CXIEXDN check valve is an efficient solution designed for simplicity and reliability in integrating into existing three-port systems while providing secure, leak-proof operation under high pressures.

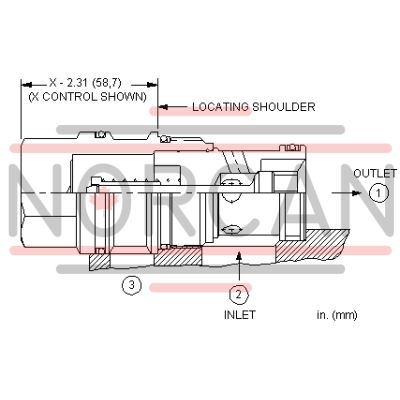

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-19A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 1.90 lb0,85 kg |
| Seal kit - Cartridge | Viton: 990-019-006 |
