SUN HYDRAULICS
CXIEXDV
$203.13 USD
- SUN HYDRAULICS
- Material:CXIEXDV
- Model:CXIE-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIEXDV (CXIEXDV) is a versatile hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi (350 bar) at ports 1 and 2. This model is distinguished by its free-flow, side-to-nose cheater check valve functionality, which operates as a standard 2-port check valve in a 3-port cavity with port 3 blocked off. This specific design makes it suitable for use in circuits that require a check valve in an existing three-port cavity. The CXIEXDV model offers exceptionally low leakage rates, with a maximum of less than one drop per minute (0.07 cc/min), ensuring efficient and reliable operation in critical hydraulic systems. The valve is built using Sun's floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing its durability and performance consistency. This model uses a T19A cavity and belongs to the Series 4 category from Sun Hydraulics. It can accommodate flow capacities up to 120 gpm (480 L/min) and is also corrosion resistant, designed specifically for use in corrosive environments. The CXIEXDV has a hex size of 1-5/8 inches (41.3 mm) and requires an installation torque between 350 - 375 lbf\u00b7ft (474 - 508 Nm). Weighing at approximately 1.90 lbs (0.85 kg), this valve is robust yet manageable for installation and maintenance processes. The recommended seal kit for this cartridge uses Viton material, part number: 990019006, ensuring high compatibility and performance under varied operational conditions.
The Sun Hydraulics CXIEXDV (CXIEXDV) is a versatile hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi (350 bar) at ports 1 and 2. This model is distinguished by its free-flow, side-to-nose cheater check valve functionality, which operates as a standard 2-port check valve in a 3-port cavity with port 3 blocked off. This specific design makes it suitable for use in circuits that require a check valve in an existing three-port cavity. The CXIEXDV model offers exceptionally low leakage rates, with a maximum of less than one drop per minute (0.07 cc/min), ensuring efficient and reliable operation in critical hydraulic systems. The valve is built using Sun's floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing its durability and performance consistency. This model uses a T19A cavity and belongs to the Series 4 category from Sun Hydraulics. It can accommodate flow capacities up to 120 gpm (480 L/min) and is also corrosion resistant, designed specifically for use in corrosive environments. The CXIEXDV has a hex size of 1-5/8 inches (41.3 mm) and requires an installation torque between 350 - 375 lbf\u00b7ft (474 - 508 Nm). Weighing at approximately 1.90 lbs (0.85 kg), this valve is robust yet manageable for installation and maintenance processes. The recommended seal kit for this cartridge uses Viton material, part number: 990019006, ensuring high compatibility and performance under varied operational conditions.

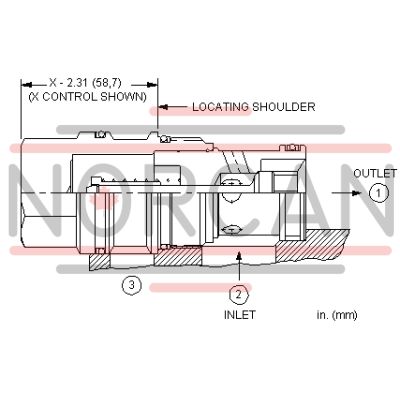

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-19A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 1.90 lb0,85 kg |
| Seal kit - Cartridge | Viton: 990-019-006 |
