SUN HYDRAULICS
CXIEXEN
$193.20 USD
- SUN HYDRAULICS
- Material:CXIEXEN
- Model:CXIE-XEN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIEXEN (CXIEXEN) is a versatile hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi (350 bar) at ports 1 and 2. This model is particularly unique as it functions as a standard 2-port check valve within a 3-port cavity, with port 3 of the cartridge effectively blocked off. This design makes it ideal for use in circuits requiring a check valve in an existing three-port cavity setup. The CXIEXEN valve offers exceptional performance with extremely low leakage rates, measured at less than one drop per minute (0.07 cc/min), ensuring efficient and reliable operation in critical conditions. It features Sun Hydraulics' floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing durability and operational reliability. With a capacity of up to 120 gpm (480 L/min), this model is suitable for substantial hydraulic fluid flow rates, making it an excellent choice for various industrial applications requiring robust fluid control solutions. The valve's hex size is 1 5/8 in. (41.3 mm), and it requires an installation torque between 350 - 375 lbf ft (474 - 508 Nm). Weighing only about 1.90 lb (0.85 kg), the CXIEXEN maintains a balance between strength and ease of handling during installation. Additionally, the corrosion-resistant feature of this cartridge valve ensures its suitability for corrosive environments when specified with the appropriate model code suffix (AP or LH). The seal kit compatible with this model uses Viton components, known for their chemical resistance and durability under high temperatures and pressures.
The Sun Hydraulics CXIEXEN (CXIEXEN) is a versatile hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi (350 bar) at ports 1 and 2. This model is particularly unique as it functions as a standard 2-port check valve within a 3-port cavity, with port 3 of the cartridge effectively blocked off. This design makes it ideal for use in circuits requiring a check valve in an existing three-port cavity setup. The CXIEXEN valve offers exceptional performance with extremely low leakage rates, measured at less than one drop per minute (0.07 cc/min), ensuring efficient and reliable operation in critical conditions. It features Sun Hydraulics' floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing durability and operational reliability. With a capacity of up to 120 gpm (480 L/min), this model is suitable for substantial hydraulic fluid flow rates, making it an excellent choice for various industrial applications requiring robust fluid control solutions. The valve's hex size is 1 5/8 in. (41.3 mm), and it requires an installation torque between 350 - 375 lbf ft (474 - 508 Nm). Weighing only about 1.90 lb (0.85 kg), the CXIEXEN maintains a balance between strength and ease of handling during installation. Additionally, the corrosion-resistant feature of this cartridge valve ensures its suitability for corrosive environments when specified with the appropriate model code suffix (AP or LH). The seal kit compatible with this model uses Viton components, known for their chemical resistance and durability under high temperatures and pressures.

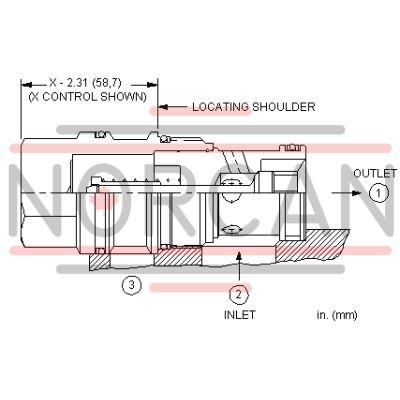

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-19A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 1.90 lb0,85 kg |
| Seal kit - Cartridge | Viton: 990-019-006 |
