SUN HYDRAULICS
CXJALCN
$168.18 USD
- SUN HYDRAULICS
- Material:CXJALCN
- Model:CXJA-LCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXJALCN (CXJALCN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model is part of the T18A cavity series and is constructed to handle a maximum flow capacity of 160 gpm (610 L/min), withstanding pressures up to 5000 psi (350 bar). The valve is notable for its extremely low leakage rate, which does not exceed 1 drop per minute (0.07 cc/min), ensuring efficient and secure operation in critical systems. The CXJALCN features Sun Hydraulics' innovative floating style construction, which reduces the risk of internal parts binding\u2014a common issue resulting from excessive installation torque or variations in cavity/cartridge machining. This design enhancement significantly improves the reliability and lifespan of the valve under various operating conditions. Configured with EPDM seals, this particular model is specifically suited for use with phosphate ester fluids; however, it is crucial to avoid exposure to petroleum-based fluids, greases, and lubricants as they can damage the seals. For environments prone to corrosion, variants with AP or LH suffixes in the model code offer additional resistance against corrosive elements. The valve's dimensions include a hex size of 1 5/8 inches (41.3 mm) and it requires an installation torque between 350 - 375 lbf\u00b7ft (474 - 508 Nm). Weighing at approximately 2.10 lbs (0.95 kg), this robust valve integrates seamlessly into various hydraulic setups without adding significant weight or complexity. In summary, the Sun Hydraulics CXJALCN check valve combines precise engineering with specialized design features to deliver superior performance in hydraulic systems where non-return functionality and minimal leakage are paramount.
The Sun Hydraulics CXJALCN (CXJALCN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model is part of the T18A cavity series and is constructed to handle a maximum flow capacity of 160 gpm (610 L/min), withstanding pressures up to 5000 psi (350 bar). The valve is notable for its extremely low leakage rate, which does not exceed 1 drop per minute (0.07 cc/min), ensuring efficient and secure operation in critical systems. The CXJALCN features Sun Hydraulics' innovative floating style construction, which reduces the risk of internal parts binding\u2014a common issue resulting from excessive installation torque or variations in cavity/cartridge machining. This design enhancement significantly improves the reliability and lifespan of the valve under various operating conditions. Configured with EPDM seals, this particular model is specifically suited for use with phosphate ester fluids; however, it is crucial to avoid exposure to petroleum-based fluids, greases, and lubricants as they can damage the seals. For environments prone to corrosion, variants with AP or LH suffixes in the model code offer additional resistance against corrosive elements. The valve's dimensions include a hex size of 1 5/8 inches (41.3 mm) and it requires an installation torque between 350 - 375 lbf\u00b7ft (474 - 508 Nm). Weighing at approximately 2.10 lbs (0.95 kg), this robust valve integrates seamlessly into various hydraulic setups without adding significant weight or complexity. In summary, the Sun Hydraulics CXJALCN check valve combines precise engineering with specialized design features to deliver superior performance in hydraulic systems where non-return functionality and minimal leakage are paramount.

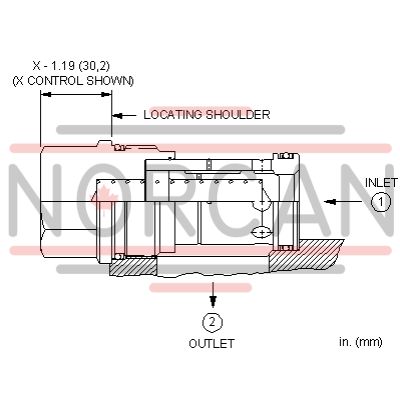

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 160 gpm610 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
