SUN HYDRAULICS
CXJCXAN
$177.01 USD
- SUN HYDRAULICS
- Material:CXJCXAN
- Model:CXJC-XAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXJCXAN (CXJCXAN) is a specialized hydraulic check valve designed for high-efficiency and reliable performance in various hydraulic systems. This model utilizes a unique free-flow, nose-to-side cheater check valve mechanism, which operates as a standard 2-port check valve when the third port of the cartridge is blocked. This design makes it particularly suitable for applications requiring a check valve in an existing three-port cavity. Featuring Sun Hydraulics' floating style construction, the CXJCXAN minimizes the risk of internal parts binding, which can be caused by excessive installation torque or variations in cavity/cartridge machining. This construction ensures consistent and dependable operation even under challenging conditions. The valve supports a maximum flow capacity of 120 gpm (480 L/min) and can withstand a maximum operating pressure of up to 5000 psi (350 bar), making it robust enough for demanding applications. The CXJCXAN has extremely low leakage rates, with less than one drop per minute (0.07 cc/min), ensuring efficient system performance with minimal fluid loss. It requires an installation torque between 350 - 375 lbf\u00b7ft (474 - 508 Nm) and uses a Viton seal kit for enhanced durability against various fluids and temperatures. The valve hex size is specified at 1 5/8 inches (41.3 mm), allowing for straightforward integration into various hydraulic setups. This model is housed within the T19A cavity and belongs to Series 4 of Sun Hydraulics' product range, indicating its alignment with other high-quality hydraulic components designed for optimal compatibility and performance across multiple applications.
The Sun Hydraulics CXJCXAN (CXJCXAN) is a specialized hydraulic check valve designed for high-efficiency and reliable performance in various hydraulic systems. This model utilizes a unique free-flow, nose-to-side cheater check valve mechanism, which operates as a standard 2-port check valve when the third port of the cartridge is blocked. This design makes it particularly suitable for applications requiring a check valve in an existing three-port cavity. Featuring Sun Hydraulics' floating style construction, the CXJCXAN minimizes the risk of internal parts binding, which can be caused by excessive installation torque or variations in cavity/cartridge machining. This construction ensures consistent and dependable operation even under challenging conditions. The valve supports a maximum flow capacity of 120 gpm (480 L/min) and can withstand a maximum operating pressure of up to 5000 psi (350 bar), making it robust enough for demanding applications. The CXJCXAN has extremely low leakage rates, with less than one drop per minute (0.07 cc/min), ensuring efficient system performance with minimal fluid loss. It requires an installation torque between 350 - 375 lbf\u00b7ft (474 - 508 Nm) and uses a Viton seal kit for enhanced durability against various fluids and temperatures. The valve hex size is specified at 1 5/8 inches (41.3 mm), allowing for straightforward integration into various hydraulic setups. This model is housed within the T19A cavity and belongs to Series 4 of Sun Hydraulics' product range, indicating its alignment with other high-quality hydraulic components designed for optimal compatibility and performance across multiple applications.

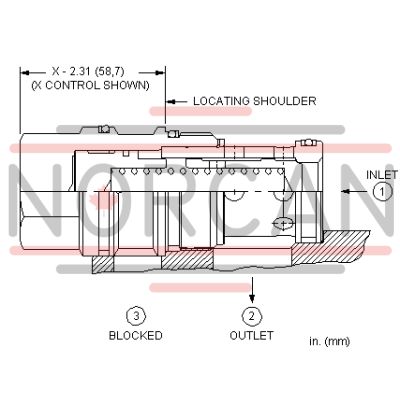

Free-flow, nose-to-side cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-19A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Seal kit - Cartridge | Viton: 990-019-006 |
