SUN HYDRAULICS
DAAHACV
$132.94 USD
- SUN HYDRAULICS
- Material:DAAHACV
- Model:DAAH-ACV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

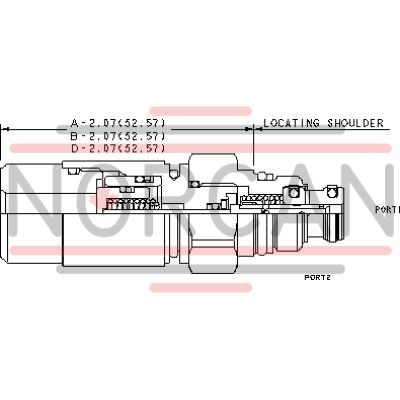

The Sun Hydraulics DAAHACV (DAAHACV) is a pilot-stage, directional, 2-position, 2-way valve designed for hydraulic operations with a spring-return mechanism. This model can be configured as either normally open or normally closed, making it versatile for various hydraulic control applications. It utilizes the Sun T8A 2-port cavity, which is specifically designed to work seamlessly with Sun's pilot-operated main stage valves, enhancing the system's efficiency by eliminating separate pilot lines and reducing the need for multiple cavity machining. The DAAHACV valve supports a maximum operating pressure of 5000 psi (350 bar) across all ports, including the pilot control port. It features a hardened spool and sleeve to ensure consistent operation, low leakage rates, and superior wear characteristics. The preferred flow path for this valve is from port 2 to port 1, and it offers different pilot control port options to suit various requirements. To operate effectively, the minimum pilot pressure needed is calculated based on the formula: pilot pressure = 85 psi + (pressure at Port 1 x .023), translating into a range of approximately 85 to 200 psi. In metric units, this formula adjusts to: pilot pressure = 6 bar + (pressure at Port 1 x 0.023), resulting in a range of about 6 to 14 bar. Additionally, this model incorporates Sun's floating style construction which minimizes potential internal parts binding caused by excessive installation torque or variations in cavity/cartridge machining. The valve dimensions include a hex size of 7/8 inches (22.2 mm) and an installation torque requirement ranging from 20 -25 lbf ft (27 -33 Nm). The cartridge also uses Viton seals for enhanced performance under various operational conditions.
The Sun Hydraulics DAAHACV (DAAHACV) is a pilot-stage, directional, 2-position, 2-way valve designed for hydraulic operations with a spring-return mechanism. This model can be configured as either normally open or normally closed, making it versatile for various hydraulic control applications. It utilizes the Sun T8A 2-port cavity, which is specifically designed to work seamlessly with Sun's pilot-operated main stage valves, enhancing the system's efficiency by eliminating separate pilot lines and reducing the need for multiple cavity machining. The DAAHACV valve supports a maximum operating pressure of 5000 psi (350 bar) across all ports, including the pilot control port. It features a hardened spool and sleeve to ensure consistent operation, low leakage rates, and superior wear characteristics. The preferred flow path for this valve is from port 2 to port 1, and it offers different pilot control port options to suit various requirements. To operate effectively, the minimum pilot pressure needed is calculated based on the formula: pilot pressure = 85 psi + (pressure at Port 1 x .023), translating into a range of approximately 85 to 200 psi. In metric units, this formula adjusts to: pilot pressure = 6 bar + (pressure at Port 1 x 0.023), resulting in a range of about 6 to 14 bar. Additionally, this model incorporates Sun's floating style construction which minimizes potential internal parts binding caused by excessive installation torque or variations in cavity/cartridge machining. The valve dimensions include a hex size of 7/8 inches (22.2 mm) and an installation torque requirement ranging from 20 -25 lbf ft (27 -33 Nm). The cartridge also uses Viton seals for enhanced performance under various operational conditions.
These pilot-stage, directional, 2-position, 2-way valves are hydraulically operated, spring-return cartridges and are available in either a normally open or normally closed configuration. These cartridges are designed for pilot flow applications and utilize Sun's T-8A cavity so they can be used in conjunction with Sun's pilot-operated, main-stage valves.
- Utilizes the Sun T-8A 2-port cavity making it the ideal choice to use in conjunction with Sun's main stage pilot or vent-to-operate cartridges. Separate pilot lines are eliminated and only one cavity needs to be machined to accommodate both the control and primary function. Note: All 2-position, 2-way pilot stage control cartridges utilize the same cavity and are physically interchangeable. Functionality is the only consideration.
- Note: The main stage valve should first be installed to the correct torque value followed by the T-8A pilot control section into the main stage valve to its required torque value.
- The preferred flow path through the valve is port 2 to port 1.
- Different pilot control port options are available. See Option Selection for details.
- All ports will accept 5000 psi (350 bar) including the pilot control port.
- Hardened spool and sleeve provide consistent operation, low spool leakage rates and superior wear characteristics.
- The minimum pilot pressure required to operate the valve is determined by the following formula: pilot pressure = 85 psi + pressure @ Port 1 times .023. This results in a pilot pressure range of 85 to 200 psi. In metric; pilot pressure = 6 bar + pressure @ Port 1 times 0,023. This results in a pilot pressure of 6 to 14 bar.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-8A |
| Series | P |
| Capacity | .25 gpm1 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Minimum Pilot Pressure to Operate | See Technical FeaturesSee Technical Features |
| Pilot Control Port | See Control OptionsSee Control Options |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Seal kit - Cartridge | Viton: 990-508-006 |
