SUN HYDRAULICS
DBAHDCV
$153.68 USD
- SUN HYDRAULICS
- Material:DBAHDCV
- Model:DBAH-DCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

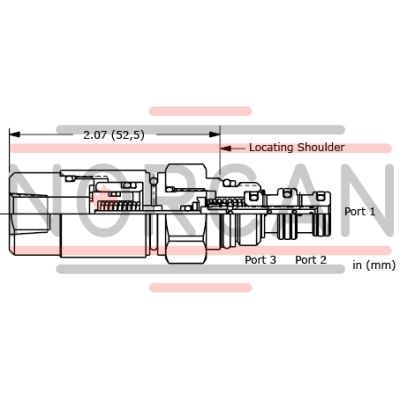

The Sun Hydraulics DBAHDCV (DBAHDCV) is a high-performance hydraulic valve designed for precise control in pilot flow applications. This directional, 2-position, 3-way valve operates as a spring-return cartridge and is available in two spool configurations: normally open from port 1 to port 2, and normally open from port 1 to port 3. Engineered for durability and reliable operation, the DBAHDCV features hardened spools and sleeves that ensure low leakage rates and exceptional wear resistance. With a capacity of 0.25 gpm (1 L/min) and capable of handling maximum operating pressures up to 5000 psi (350 bar), this valve is robust enough for demanding hydraulic systems. It incorporates Sun\u2019s floating style construction which helps prevent internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design enhances the overall reliability and longevity of the valve. The DBAHDCV requires a minimum pilot pressure calculated by the formula: pilot pressure = 85 psi + (pressure at Port 1 x .023), resulting in a range of 85 to 200 psi or in metric terms, 6 to 14 bar. The versatility of the DBAHDCV is further augmented by various pilot control port options that allow customization based on specific application needs. For installation, the valve has a hex size of 7/8 inches (22.2 mm) with recommended torque settings between 20 -25 lbf.ft (27 -33 Nm). Additionally, this model uses Viton seals for enhanced temperature and chemical resistance, ensuring effective sealing under diverse operating conditions. Whether used in industrial machinery or mobile hydraulics, the Sun Hydraulics DBAHDCV provides efficient control with its advanced design tailored for pilot flow applications.
The Sun Hydraulics DBAHDCV (DBAHDCV) is a high-performance hydraulic valve designed for precise control in pilot flow applications. This directional, 2-position, 3-way valve operates as a spring-return cartridge and is available in two spool configurations: normally open from port 1 to port 2, and normally open from port 1 to port 3. Engineered for durability and reliable operation, the DBAHDCV features hardened spools and sleeves that ensure low leakage rates and exceptional wear resistance. With a capacity of 0.25 gpm (1 L/min) and capable of handling maximum operating pressures up to 5000 psi (350 bar), this valve is robust enough for demanding hydraulic systems. It incorporates Sun\u2019s floating style construction which helps prevent internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design enhances the overall reliability and longevity of the valve. The DBAHDCV requires a minimum pilot pressure calculated by the formula: pilot pressure = 85 psi + (pressure at Port 1 x .023), resulting in a range of 85 to 200 psi or in metric terms, 6 to 14 bar. The versatility of the DBAHDCV is further augmented by various pilot control port options that allow customization based on specific application needs. For installation, the valve has a hex size of 7/8 inches (22.2 mm) with recommended torque settings between 20 -25 lbf.ft (27 -33 Nm). Additionally, this model uses Viton seals for enhanced temperature and chemical resistance, ensuring effective sealing under diverse operating conditions. Whether used in industrial machinery or mobile hydraulics, the Sun Hydraulics DBAHDCV provides efficient control with its advanced design tailored for pilot flow applications.
These pilot-stage, directional, 2-position, 3-way valves are hydraulically operated, spring-return cartridges and are available in two spool configurations; normally open 1 to 2 and normally open 1 to 3. These cartridges are designed for pilot flow applications.
- Different pilot control port options are available. See Option Selection for details.
- All ports will accept 5000 psi (350 bar) including the pilot control port.
- Hardened spool and sleeve provide consistent operation, low spool leakage rates and superior wear characteristics.
- The minimum pilot pressure required to operate the valve is determined by the following formula: pilot pressure = 85 psi + pressure @ Port 1 times .023. This results in a pilot pressure range of 85 to 200 psi. In metric; pilot pressure = 6 bar + pressure @ Port 1 times 0,023. This results in a pilot pressure of 6 to 14 bar.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-9A |
| Series | P |
| Capacity | .25 gpm1 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Minimum Pilot Pressure to Operate | See Technical FeaturesSee Technical Features |
| Pilot Control Port | See Control OptionsSee Control Options |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Seal kit - Cartridge | Viton: 990-509-006 |
