SUN HYDRAULICS
DBAMDCV
$185.06 USD
- SUN HYDRAULICS
- Material:DBAMDCV
- Model:DBAM-DCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

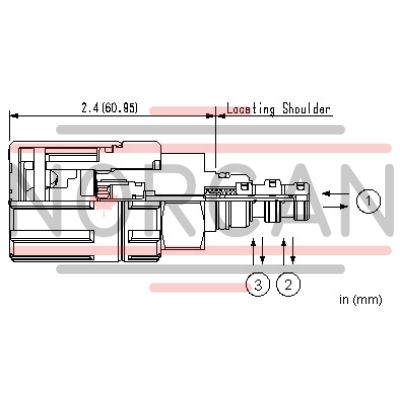

The Sun Hydraulics DBAMDCV (DBAMDCV) is a versatile manual hydraulic control valve characterized by its pilot-stage, directional, 2-position, 3-way configuration. This manually operated cartridge valve comes in two spool configurations: normally open from port 1 to port 2, and normally open from port 1 to port 3, catering specifically to pilot flow applications. Its design incorporates Sun\u2019s TwistLock manual override mechanism which is intended for intermittent and infrequent use. The valve features multiple control options including a momentary-twist control (option T), allowing temporary shifting by twisting the knob clockwise; a detent-lock control (option L) for maintaining a mechanically detented position until manually reverted; and a dual-operation control (option D) that combines both functionalities. The manual controls are designed exclusively for hand operation and should not be modified or mechanically automated. Constructed with a hardened spool and sleeve, the DBAMDCV ensures consistent operation with low spool leakage rates and superior wear characteristics. It also employs Sun\u2019s floating style construction which minimizes internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. The valve operates effectively up to a maximum pressure of 5000 psi (350 bar), with a flow capacity of about .25 gpm (1 L/min). It has been engineered for minimal leakage, even at high pressures, ensuring efficient performance. The model is compact, weighing just .40 lb (0.20 kg), and can be easily installed with specific torque requirements provided for optimal usage. Maintenance is straightforward as the manual control assembly can be replaced in the field without needing to remove the cartridge from its manifold or main stage element.
The Sun Hydraulics DBAMDCV (DBAMDCV) is a versatile manual hydraulic control valve characterized by its pilot-stage, directional, 2-position, 3-way configuration. This manually operated cartridge valve comes in two spool configurations: normally open from port 1 to port 2, and normally open from port 1 to port 3, catering specifically to pilot flow applications. Its design incorporates Sun\u2019s TwistLock manual override mechanism which is intended for intermittent and infrequent use. The valve features multiple control options including a momentary-twist control (option T), allowing temporary shifting by twisting the knob clockwise; a detent-lock control (option L) for maintaining a mechanically detented position until manually reverted; and a dual-operation control (option D) that combines both functionalities. The manual controls are designed exclusively for hand operation and should not be modified or mechanically automated. Constructed with a hardened spool and sleeve, the DBAMDCV ensures consistent operation with low spool leakage rates and superior wear characteristics. It also employs Sun\u2019s floating style construction which minimizes internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. The valve operates effectively up to a maximum pressure of 5000 psi (350 bar), with a flow capacity of about .25 gpm (1 L/min). It has been engineered for minimal leakage, even at high pressures, ensuring efficient performance. The model is compact, weighing just .40 lb (0.20 kg), and can be easily installed with specific torque requirements provided for optimal usage. Maintenance is straightforward as the manual control assembly can be replaced in the field without needing to remove the cartridge from its manifold or main stage element.
These pilot-stage, directional, 2-position, 3-way valves are manually operated cartridges and are available in two spool configurations; normally open 1 to 2 and normally open 1 to 3. These cartridges are designed for pilot flow applications. Manual operation is achieved via Sun's Twist/Lock manual override mechanism and is designed for intermittent (infrequent) use only.
- This valve is designed for intermittent use such as a manual override. The manual control assembly has a mechanical life expectancy of about 10,000 cycles.
- The manual control assembly can be easily replaced in the field without removing the cartridge from the manifold or main stage element.
- The momentary/twist control option "T" allows the operator to momentarily shift the valve by twisting the knob clockwise and releasing. Once released, the valve returns to its normal position.
- The detent/lock control option "L" allows the operator to shift the valve into a mechanically detented position by twisting the knob counter-clockwise. This detented position will be maintained until the operator twists the knob clockwise and allows the valve to return to its normal position.
- The dual-operation control option "D" allows the operator to either shift the valve momentarily by twisting the knob clockwise or shift it into a mechanically detented postion by twisting counter-clockwise.
- The control on this valve is meant to be operated by a person's hand. The control should not be modified, for instance fastening a lever to the knob. Under no circumstances should the control be operated by other mechanical devices.
- Hardened spool and sleeve provide consistent operation, low spool leakage rates and superior wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-9A |
| Series | P |
| Capacity | .25 gpm1 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-109-006 |
