SUN HYDRAULICS
DBAMLCN
$177.11 USD
- SUN HYDRAULICS
- Material:DBAMLCN
- Model:DBAM-LCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DBAMLCN (DBAMLCN) is a manually operated, pilot-stage, directional control valve specifically designed for intermittent infrequent use with a manual override. It features a 2-position, 3-way configuration and is available in two spool options: normally open from port 1 to port 2 and normally open from port 1 to port 3. This valve is ideal for pilot flow applications where manual control is necessary. The DBAMLCN operates using Sun's TwistLock manual override mechanism which includes multiple control options: momentary-twist (T), detent-lock (L), and dual-operation (D). The momentary-twist option allows the valve to momentarily shift by twisting the knob clockwise; upon release, it automatically returns to its original position. The detent-lock option enables the valve to remain in a shifted position until manually reset, while the dual-operation feature offers both functionalities depending on the direction of the twist. Constructed with hardened spool and sleeve, the DBAMLCN ensures consistent operation, low leakage rates, and high wear resistance. It employs Sun\u2019s floating style construction which minimizes internal binding caused by excessive installation torque or cavity/cartridge machining variations. This design enhances reliability and extends the mechanical life expectancy of approximately 10,000 cycles. Additional technical specifications include a maximum operating pressure of 5000 psi (350 bar), a flow capacity of .25 gpm (1 L/min), and maximum valve leakage at high pressure conditions being relatively minimal. Installation requires specific torque settings and utilizes a standard T9A cavity size. The valve's hex size is 7/8 in. (22.2 mm) with an installation torque of 20 - 25 lbf ft (27 - 33 Nm), weighing about .40 lb (0.20 kg). For maintenance or repairs, Viton seal kits are readily available under part number 990109006.
The Sun Hydraulics DBAMLCN (DBAMLCN) is a manually operated, pilot-stage, directional control valve specifically designed for intermittent infrequent use with a manual override. It features a 2-position, 3-way configuration and is available in two spool options: normally open from port 1 to port 2 and normally open from port 1 to port 3. This valve is ideal for pilot flow applications where manual control is necessary. The DBAMLCN operates using Sun's TwistLock manual override mechanism which includes multiple control options: momentary-twist (T), detent-lock (L), and dual-operation (D). The momentary-twist option allows the valve to momentarily shift by twisting the knob clockwise; upon release, it automatically returns to its original position. The detent-lock option enables the valve to remain in a shifted position until manually reset, while the dual-operation feature offers both functionalities depending on the direction of the twist. Constructed with hardened spool and sleeve, the DBAMLCN ensures consistent operation, low leakage rates, and high wear resistance. It employs Sun\u2019s floating style construction which minimizes internal binding caused by excessive installation torque or cavity/cartridge machining variations. This design enhances reliability and extends the mechanical life expectancy of approximately 10,000 cycles. Additional technical specifications include a maximum operating pressure of 5000 psi (350 bar), a flow capacity of .25 gpm (1 L/min), and maximum valve leakage at high pressure conditions being relatively minimal. Installation requires specific torque settings and utilizes a standard T9A cavity size. The valve's hex size is 7/8 in. (22.2 mm) with an installation torque of 20 - 25 lbf ft (27 - 33 Nm), weighing about .40 lb (0.20 kg). For maintenance or repairs, Viton seal kits are readily available under part number 990109006.

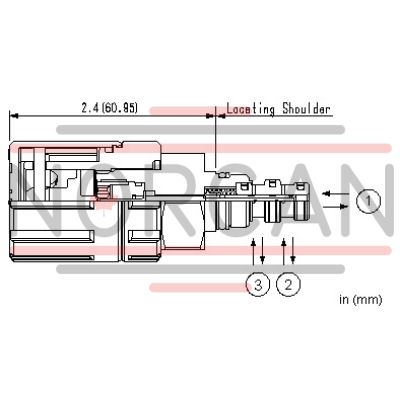

These pilot-stage, directional, 2-position, 3-way valves are manually operated cartridges and are available in two spool configurations; normally open 1 to 2 and normally open 1 to 3. These cartridges are designed for pilot flow applications. Manual operation is achieved via Sun's Twist/Lock manual override mechanism and is designed for intermittent (infrequent) use only.
- This valve is designed for intermittent use such as a manual override. The manual control assembly has a mechanical life expectancy of about 10,000 cycles.
- The manual control assembly can be easily replaced in the field without removing the cartridge from the manifold or main stage element.
- The momentary/twist control option "T" allows the operator to momentarily shift the valve by twisting the knob clockwise and releasing. Once released, the valve returns to its normal position.
- The detent/lock control option "L" allows the operator to shift the valve into a mechanically detented position by twisting the knob counter-clockwise. This detented position will be maintained until the operator twists the knob clockwise and allows the valve to return to its normal position.
- The dual-operation control option "D" allows the operator to either shift the valve momentarily by twisting the knob clockwise or shift it into a mechanically detented postion by twisting counter-clockwise.
- The control on this valve is meant to be operated by a person's hand. The control should not be modified, for instance fastening a lever to the knob. Under no circumstances should the control be operated by other mechanical devices.
- Hardened spool and sleeve provide consistent operation, low spool leakage rates and superior wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-9A |
| Series | P |
| Capacity | .25 gpm1 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-109-006 |
