SUN HYDRAULICS
DBAMTHV
$185.06 USD
- SUN HYDRAULICS
- Material:DBAMTHV
- Model:DBAM-THV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DBAMTHV (DBAMTHV) is a manually operated, pilot-stage, directional control valve designed for specific hydraulic applications. This 2-position, 3-way cartridge valve is available in two spool configurations: normally open from port 1 to 2 and normally open from port 1 to 3, making it versatile in its function. The valve features Sun Hydraulics' TwistLock manual override mechanism which is intended for intermittent and infrequent use, highlighting its suitability as a manual override within hydraulic circuits. The DBAMTHV offers several control options including momentary-twist (option T), detent-lock (option L), and dual-operation (option D). These options provide flexibility in operation; the momentary-twist allows for temporary shifting of the valve by twisting the knob clockwise, whereas the detent-lock maintains the valve in a shifted position until manually reset. The dual-operation combines both features, giving operators enhanced control based on application needs. Constructed with a hardened spool and sleeve, the DBAMTHV ensures consistent operation with low leakage rates and superior wear characteristics. It also incorporates Sun's floating style construction which minimizes internal parts binding due to installation torque or machining variations of cavity/cartridge. This construction detail ensures reliability and longevity of the valve under various operational conditions. The valve operates at a maximum pressure of 5000 psi (350 bar) and has a flow capacity of .25 gpm (1 L/min). It is designed with a T9A cavity and belongs to the P series. With an operational life expectancy of about 10,000 cycles for the manual control assembly, maintenance is straightforward as it can be replaced in the field without needing to dismantle other components. The DBAMTHV weighs approximately .40 lb (0.20 kg) and requires installation torque between 20-25 lbf\u00b7ft (27-33 Nm), ensuring easy integration into existing systems without extensive modifications.
The Sun Hydraulics DBAMTHV (DBAMTHV) is a manually operated, pilot-stage, directional control valve designed for specific hydraulic applications. This 2-position, 3-way cartridge valve is available in two spool configurations: normally open from port 1 to 2 and normally open from port 1 to 3, making it versatile in its function. The valve features Sun Hydraulics' TwistLock manual override mechanism which is intended for intermittent and infrequent use, highlighting its suitability as a manual override within hydraulic circuits. The DBAMTHV offers several control options including momentary-twist (option T), detent-lock (option L), and dual-operation (option D). These options provide flexibility in operation; the momentary-twist allows for temporary shifting of the valve by twisting the knob clockwise, whereas the detent-lock maintains the valve in a shifted position until manually reset. The dual-operation combines both features, giving operators enhanced control based on application needs. Constructed with a hardened spool and sleeve, the DBAMTHV ensures consistent operation with low leakage rates and superior wear characteristics. It also incorporates Sun's floating style construction which minimizes internal parts binding due to installation torque or machining variations of cavity/cartridge. This construction detail ensures reliability and longevity of the valve under various operational conditions. The valve operates at a maximum pressure of 5000 psi (350 bar) and has a flow capacity of .25 gpm (1 L/min). It is designed with a T9A cavity and belongs to the P series. With an operational life expectancy of about 10,000 cycles for the manual control assembly, maintenance is straightforward as it can be replaced in the field without needing to dismantle other components. The DBAMTHV weighs approximately .40 lb (0.20 kg) and requires installation torque between 20-25 lbf\u00b7ft (27-33 Nm), ensuring easy integration into existing systems without extensive modifications.

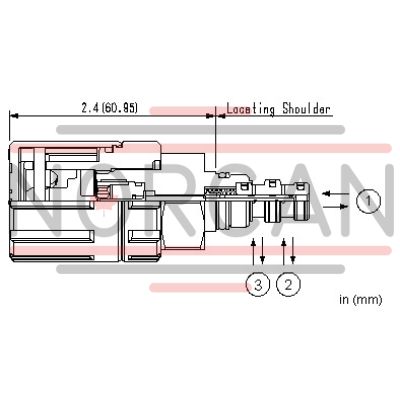

These pilot-stage, directional, 2-position, 3-way valves are manually operated cartridges and are available in two spool configurations; normally open 1 to 2 and normally open 1 to 3. These cartridges are designed for pilot flow applications. Manual operation is achieved via Sun's Twist/Lock manual override mechanism and is designed for intermittent (infrequent) use only.
- This valve is designed for intermittent use such as a manual override. The manual control assembly has a mechanical life expectancy of about 10,000 cycles.
- The manual control assembly can be easily replaced in the field without removing the cartridge from the manifold or main stage element.
- The momentary/twist control option "T" allows the operator to momentarily shift the valve by twisting the knob clockwise and releasing. Once released, the valve returns to its normal position.
- The detent/lock control option "L" allows the operator to shift the valve into a mechanically detented position by twisting the knob counter-clockwise. This detented position will be maintained until the operator twists the knob clockwise and allows the valve to return to its normal position.
- The dual-operation control option "D" allows the operator to either shift the valve momentarily by twisting the knob clockwise or shift it into a mechanically detented postion by twisting counter-clockwise.
- The control on this valve is meant to be operated by a person's hand. The control should not be modified, for instance fastening a lever to the knob. Under no circumstances should the control be operated by other mechanical devices.
- Hardened spool and sleeve provide consistent operation, low spool leakage rates and superior wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-9A |
| Series | P |
| Capacity | .25 gpm1 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-109-006 |
