SUN HYDRAULICS
DBAPECN
$140.68 USD
- SUN HYDRAULICS
- Material:DBAPECN
- Model:DBAP-ECN
- Summary:Cartridge
Quantity in stock: 1
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DBAPECN (DBAPECN) is a high-performance hydraulic valve designed for precise control in fluid power applications. This pneumatically operated, spring-return cartridge valve features a directional, 2-position, 3-way configuration. It is available in two spool options: normally open from port 1 to port 2 and normally open from port 1 to port 3, allowing for flexible application across various hydraulic systems. The DBAPECN valve is engineered with a hardened spool and sleeve to ensure consistent operation, low spool leakage rates, and superior wear characteristics, enhancing the valve's lifespan and reliability. It operates within a pilot pressure range of 20 to 70 psi or 1.4 to 5 bar, calculated by adding either 20 psi or 1.4 bar to the pressure at Port 1 divided by 100. This formula helps determine the minimum pilot pressure required for operation. Designed for robust performance, the DBAPECN can withstand a maximum operating pressure of up to 5000 psi (350 bar) at all ports except the pilot control port, which accepts up to 500 psi (35 bar). The valve's capacity is rated at .25 gpm (1 L/min), with maximum leakage specified at less than ten drops per minute under full pressure conditions. Incorporating Sun\u2019s unique floating style construction minimizes internal parts binding that could occur due to excessive installation torque or variations in cavity/cartridge machining. This feature aids in maintaining operational integrity and performance consistency throughout its service life. The valve also comes with a Viton seal kit (990509006), ensuring reliable sealing under various operating conditions.
The Sun Hydraulics DBAPECN (DBAPECN) is a high-performance hydraulic valve designed for precise control in fluid power applications. This pneumatically operated, spring-return cartridge valve features a directional, 2-position, 3-way configuration. It is available in two spool options: normally open from port 1 to port 2 and normally open from port 1 to port 3, allowing for flexible application across various hydraulic systems. The DBAPECN valve is engineered with a hardened spool and sleeve to ensure consistent operation, low spool leakage rates, and superior wear characteristics, enhancing the valve's lifespan and reliability. It operates within a pilot pressure range of 20 to 70 psi or 1.4 to 5 bar, calculated by adding either 20 psi or 1.4 bar to the pressure at Port 1 divided by 100. This formula helps determine the minimum pilot pressure required for operation. Designed for robust performance, the DBAPECN can withstand a maximum operating pressure of up to 5000 psi (350 bar) at all ports except the pilot control port, which accepts up to 500 psi (35 bar). The valve's capacity is rated at .25 gpm (1 L/min), with maximum leakage specified at less than ten drops per minute under full pressure conditions. Incorporating Sun\u2019s unique floating style construction minimizes internal parts binding that could occur due to excessive installation torque or variations in cavity/cartridge machining. This feature aids in maintaining operational integrity and performance consistency throughout its service life. The valve also comes with a Viton seal kit (990509006), ensuring reliable sealing under various operating conditions.

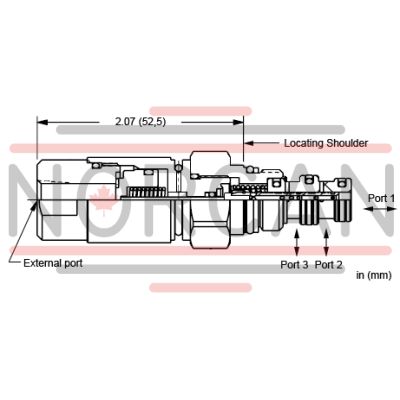

These pilot-stage, directional, 2-position, 3-way valves are pneumatically operated, spring-return cartridges and are available in two spool configurations; normally open 1 to 2 and normally open 1 to 3.
- Different pilot control port options are available. See Option Selection for details.
- Hardened spool and sleeve provide consistent operation, low spool leakage rates and superior wear characteristics.
- The minimum pilot pressure required to operate the valve is determined by the following formula: pilot pressure = 20 psi + pressure @ Port 1 divided by 100. This results in a pilot pressure range of 20 to 70 psi. In metric; pilot pressure = 1,4 bar + pressure @ Port 1 divided by 100. This results in a pilot pressure of 1,4 to 5 bar.
- All ports will accept 5000 psi (350 bar) with the exception of the pilot port which accepts 500 psi (35 bar) max.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-9A |
| Series | P |
| Capacity | .25 gpm1 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Minimum Pilot Pressure to Operate | 20 [+ port 1 press./100] psi1,5 [+ port 1 press./100] bar |
| Pilot Control Port | See Control OptionsSee Control Options |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Seal kit - Cartridge | Viton: 990-509-006 |
