SUN HYDRAULICS
DBAPPCV
$148.62 USD
- SUN HYDRAULICS
- Material:DBAPPCV
- Model:DBAP-PCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DBAPPCV (DBAPPCV) is a versatile and robust directional control valve, ideal for a range of pneumatic applications. This pilot-stage, directional, 2-position, 3-way valve is pneumatically operated with a spring-return mechanism. It is available in two spool configurations: normally open from port 1 to port 2, and normally open from port 1 to port 3. The valve offers different pilot control port options that can be selected based on specific application needs. Constructed with a hardened spool and sleeve, the DBAPPCV ensures consistent operation, low spool leakage rates, and superior wear characteristics. It operates efficiently within a pilot pressure range of 20 to 70 psi or 1.4 to 5 bar, calculated by adding 20 psi or 1.4 bar to the pressure at Port 1 divided by 100. The valve's maximum operating pressure stands at an impressive 5000 psi (350 bar), although the pilot port can accept up to only 500 psi (35 bar). Each of the ports on this valve can accommodate this high pressure which makes it suitable for high-pressure tasks while ensuring safety and efficiency. Additionally, this model incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue due to excessive installation torque or cavity/cartridge machining variations. With a flow capacity of .25 gpm (1 L/min) and maximum valve leakage specified at under ten drops per minute at full pressure, the DBAPPCV combines reliability with performance efficiency in hydraulic systems requiring precise control under varying conditions.
The Sun Hydraulics DBAPPCV (DBAPPCV) is a versatile and robust directional control valve, ideal for a range of pneumatic applications. This pilot-stage, directional, 2-position, 3-way valve is pneumatically operated with a spring-return mechanism. It is available in two spool configurations: normally open from port 1 to port 2, and normally open from port 1 to port 3. The valve offers different pilot control port options that can be selected based on specific application needs. Constructed with a hardened spool and sleeve, the DBAPPCV ensures consistent operation, low spool leakage rates, and superior wear characteristics. It operates efficiently within a pilot pressure range of 20 to 70 psi or 1.4 to 5 bar, calculated by adding 20 psi or 1.4 bar to the pressure at Port 1 divided by 100. The valve's maximum operating pressure stands at an impressive 5000 psi (350 bar), although the pilot port can accept up to only 500 psi (35 bar). Each of the ports on this valve can accommodate this high pressure which makes it suitable for high-pressure tasks while ensuring safety and efficiency. Additionally, this model incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue due to excessive installation torque or cavity/cartridge machining variations. With a flow capacity of .25 gpm (1 L/min) and maximum valve leakage specified at under ten drops per minute at full pressure, the DBAPPCV combines reliability with performance efficiency in hydraulic systems requiring precise control under varying conditions.

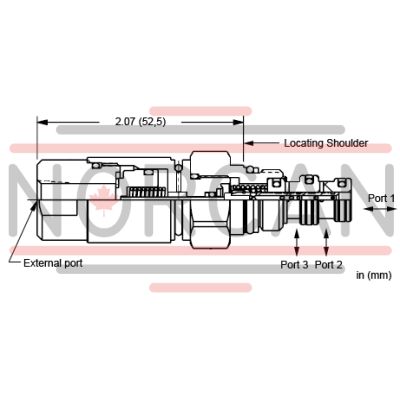

These pilot-stage, directional, 2-position, 3-way valves are pneumatically operated, spring-return cartridges and are available in two spool configurations; normally open 1 to 2 and normally open 1 to 3.
- Different pilot control port options are available. See Option Selection for details.
- Hardened spool and sleeve provide consistent operation, low spool leakage rates and superior wear characteristics.
- The minimum pilot pressure required to operate the valve is determined by the following formula: pilot pressure = 20 psi + pressure @ Port 1 divided by 100. This results in a pilot pressure range of 20 to 70 psi. In metric; pilot pressure = 1,4 bar + pressure @ Port 1 divided by 100. This results in a pilot pressure of 1,4 to 5 bar.
- All ports will accept 5000 psi (350 bar) with the exception of the pilot port which accepts 500 psi (35 bar) max.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-9A |
| Series | P |
| Capacity | .25 gpm1 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Minimum Pilot Pressure to Operate | 20 [+ port 1 press./100] psi1,5 [+ port 1 press./100] bar |
| Pilot Control Port | See Control OptionsSee Control Options |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Seal kit - Cartridge | Viton: 990-509-006 |
