SUN HYDRAULICS
DCCADHN
$184.36 USD
- SUN HYDRAULICS
- Material:DCCADHN
- Model:DCCA-DHN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCADHN (DCCADHN) is a versatile three-position, 4-way directional cartridge valve featuring spring-centered operation and a 6-port configuration. This model can be customized with one of 10 different spool options to suit various hydraulic system requirements. Each spool type influences the capacity of these pilot-to-shift valves, which ranges from 7 to 10 gpm (28 to 40 L/min). Designed to handle a maximum operating pressure of 5000 psi (350 bar), the DCCADHN ensures robust performance in demanding applications. The valve's construction includes hardened spool and sleeve components that not only reduce leakage but also enhance wear characteristics, ensuring long-term reliability and consistent operation. It also incorporates Sun's floating style construction which helps prevent internal parts from binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This feature is critical for maintaining the valve\u2019s operational integrity and performance. Key specifications include a minimum pilot pressure requirement of 175 psi (12 bar) for shifting the valve, and maximum leakage at high viscosity is capped at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The DCCADHN has a compact form factor with a weight of just .40 lb (0.20 kg), and it requires an installation torque between 30-35 lbf\u00b7ft (41-47 Nm). The valve uses a Viton seal kit suitable for various hydraulic applications, ensuring compatibility and performance across different systems.
The Sun Hydraulics DCCADHN (DCCADHN) is a versatile three-position, 4-way directional cartridge valve featuring spring-centered operation and a 6-port configuration. This model can be customized with one of 10 different spool options to suit various hydraulic system requirements. Each spool type influences the capacity of these pilot-to-shift valves, which ranges from 7 to 10 gpm (28 to 40 L/min). Designed to handle a maximum operating pressure of 5000 psi (350 bar), the DCCADHN ensures robust performance in demanding applications. The valve's construction includes hardened spool and sleeve components that not only reduce leakage but also enhance wear characteristics, ensuring long-term reliability and consistent operation. It also incorporates Sun's floating style construction which helps prevent internal parts from binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This feature is critical for maintaining the valve\u2019s operational integrity and performance. Key specifications include a minimum pilot pressure requirement of 175 psi (12 bar) for shifting the valve, and maximum leakage at high viscosity is capped at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The DCCADHN has a compact form factor with a weight of just .40 lb (0.20 kg), and it requires an installation torque between 30-35 lbf\u00b7ft (41-47 Nm). The valve uses a Viton seal kit suitable for various hydraulic applications, ensuring compatibility and performance across different systems.

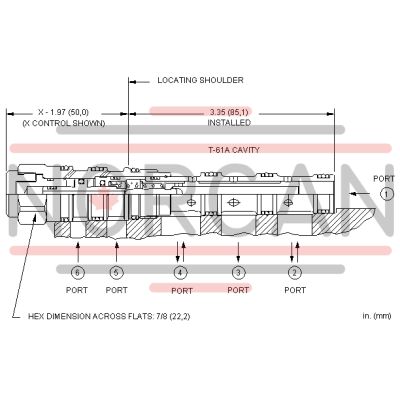

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
