SUN HYDRAULICS
DCCADHV
$195.28 USD
- SUN HYDRAULICS
- Material:DCCADHV
- Model:DCCA-DHV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCADHV (DCCADHV) is a versatile hydraulic valve designed for high-performance applications requiring precise control over fluid direction and flow. This model is a three-position, 4-way directional cartridge valve that is spring-centered and features six ports, including pilot ports (port 5 and port 6). Each of these ports can withstand up to 5000 psi (350 bar), making the valve suitable for high-pressure systems. The DCCADHV can be tailored to specific needs through a selection of 10 different spool options, impacting the pilot-to-shift valve\u2019s capacity which ranges from 7 to 10 gpm (28 to 40 L/min). The minimum pilot pressure required to shift the valve is 175 psi (12 bar), ensuring reliable operation under varying conditions. Additionally, this model boasts a maximum operating pressure of 5000 psi (350 bar) and exhibits maximum valve leakage at a rate of only 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), demonstrating its efficiency and robustness in maintaining system integrity. Notably, the DCCADHV incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014this feature is crucial for maintaining consistent performance despite potential installation torque excesses or machining variations in cavity/cartridge setups. The hardened spool and sleeve enhance durability by providing low spool leakage rates and excellent wear characteristics. For installation, the valve has a hex size of 7/8 in. (22.2 mm) and requires an installation torque between 30-35 lbf\u00b7ft (41-47 Nm). It weighs approximately .40 lb (0.20 kg), making it relatively lightweight yet sturdy enough for demanding applications. Additionally, the DCCADHV uses Viton seals for enhanced performance under various environmental conditions. This model is engineered to deliver reliable performance where precise hydraulic control is essential.
The Sun Hydraulics DCCADHV (DCCADHV) is a versatile hydraulic valve designed for high-performance applications requiring precise control over fluid direction and flow. This model is a three-position, 4-way directional cartridge valve that is spring-centered and features six ports, including pilot ports (port 5 and port 6). Each of these ports can withstand up to 5000 psi (350 bar), making the valve suitable for high-pressure systems. The DCCADHV can be tailored to specific needs through a selection of 10 different spool options, impacting the pilot-to-shift valve\u2019s capacity which ranges from 7 to 10 gpm (28 to 40 L/min). The minimum pilot pressure required to shift the valve is 175 psi (12 bar), ensuring reliable operation under varying conditions. Additionally, this model boasts a maximum operating pressure of 5000 psi (350 bar) and exhibits maximum valve leakage at a rate of only 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), demonstrating its efficiency and robustness in maintaining system integrity. Notably, the DCCADHV incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014this feature is crucial for maintaining consistent performance despite potential installation torque excesses or machining variations in cavity/cartridge setups. The hardened spool and sleeve enhance durability by providing low spool leakage rates and excellent wear characteristics. For installation, the valve has a hex size of 7/8 in. (22.2 mm) and requires an installation torque between 30-35 lbf\u00b7ft (41-47 Nm). It weighs approximately .40 lb (0.20 kg), making it relatively lightweight yet sturdy enough for demanding applications. Additionally, the DCCADHV uses Viton seals for enhanced performance under various environmental conditions. This model is engineered to deliver reliable performance where precise hydraulic control is essential.

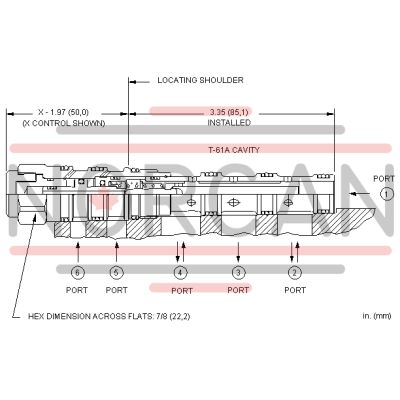

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
