SUN HYDRAULICS
DCCADNN
$180.39 USD
- SUN HYDRAULICS
- Material:DCCADNN
- Model:DCCA-DNN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCADNN (DCCADNN) is a high-performance, three-position, 4-way directional cartridge valve, engineered for demanding hydraulic control applications. This spring-centered, 6-port directional valve offers versatility through a selection of 10 different spool options, enabling customization to meet specific system requirements. Each port, including the x and y pilot ports (port 5 and port 6), can handle up to 5000 psi (350 bar), ensuring robust performance under high-pressure conditions. The DCCADNN features a hardened spool and sleeve which not only reduce spool leakage rates but also enhance wear characteristics, prolonging the valve's operational lifespan. Its innovative design incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue stemming from excessive installation torque or variations in cavity/cartridge machining. This design detail ensures reliable and consistent performance. With a flow capacity ranging between 7 to 10 gpm (28 to 40 L/min) and requiring a minimum pilot pressure of 175 psi (12 bar) to shift the valve, it is adept at handling moderate to high flow rates efficiently. The maximum operating pressure for the valve stands at an impressive 5000 psi (350 bar), with maximum valve leakage maintained at a low rate of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additional technical specifications include a pilot volume displacement of .02 in\u00b3 (0.33 cc), hex size of the valve at 7/8 in. (22.2 mm), and an installation torque range between 30 -35 lbf\u00b7ft (41 -47 Nm). The model weighs approximately .40 lb (0.20 kg) and utilizes Viton seals for enhanced chemical resistance and durability under various environmental conditions.
The Sun Hydraulics DCCADNN (DCCADNN) is a high-performance, three-position, 4-way directional cartridge valve, engineered for demanding hydraulic control applications. This spring-centered, 6-port directional valve offers versatility through a selection of 10 different spool options, enabling customization to meet specific system requirements. Each port, including the x and y pilot ports (port 5 and port 6), can handle up to 5000 psi (350 bar), ensuring robust performance under high-pressure conditions. The DCCADNN features a hardened spool and sleeve which not only reduce spool leakage rates but also enhance wear characteristics, prolonging the valve's operational lifespan. Its innovative design incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue stemming from excessive installation torque or variations in cavity/cartridge machining. This design detail ensures reliable and consistent performance. With a flow capacity ranging between 7 to 10 gpm (28 to 40 L/min) and requiring a minimum pilot pressure of 175 psi (12 bar) to shift the valve, it is adept at handling moderate to high flow rates efficiently. The maximum operating pressure for the valve stands at an impressive 5000 psi (350 bar), with maximum valve leakage maintained at a low rate of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additional technical specifications include a pilot volume displacement of .02 in\u00b3 (0.33 cc), hex size of the valve at 7/8 in. (22.2 mm), and an installation torque range between 30 -35 lbf\u00b7ft (41 -47 Nm). The model weighs approximately .40 lb (0.20 kg) and utilizes Viton seals for enhanced chemical resistance and durability under various environmental conditions.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

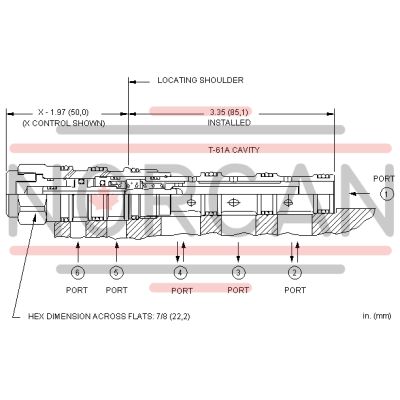

| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
