SUN HYDRAULICS
DCCADTN
$184.36 USD
- SUN HYDRAULICS
- Material:DCCADTN
- Model:DCCA-DTN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCADTN (DCCADTN) is a three-position, 4-way directional cartridge valve notable for its versatility and robust performance in controlling hydraulic flow. This model features a spring-centered mechanism and offers a choice of 10 different spool options, allowing customization according to specific application requirements. The valve supports a maximum operating pressure of 5000 psi (350 bar) across all its ports, including the pilot ports (port 5 and port 6), which are essential for the valve's shifting operations. The DCCADTN is engineered to handle flow capacities ranging from 7 to 10 gpm (28 to 40 L/min), making it suitable for a wide range of medium-flow applications. It requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve, ensuring responsive control under varied conditions. The design incorporates Sun\u2019s floating style construction, which reduces the risk of internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Additionally, this model is built with hardened spool and sleeve components that not only minimize leakage but also enhance wear characteristics, thereby extending the valve's operational lifespan. The specified maximum valve leakage is maintained at an efficient rate of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). For installation, the valve has a hex size of 7/8 in. (22.2 mm) and requires an installation torque between 30 -35 lbf ft (41 -47 Nm). Weighing just 0.40 lb (0.20 kg), the DCCADTN is relatively lightweight yet durable enough to withstand demanding usage conditions. Its compatibility with Viton seal kits further ensures reliable performance in various hydraulic systems.
The Sun Hydraulics DCCADTN (DCCADTN) is a three-position, 4-way directional cartridge valve notable for its versatility and robust performance in controlling hydraulic flow. This model features a spring-centered mechanism and offers a choice of 10 different spool options, allowing customization according to specific application requirements. The valve supports a maximum operating pressure of 5000 psi (350 bar) across all its ports, including the pilot ports (port 5 and port 6), which are essential for the valve's shifting operations. The DCCADTN is engineered to handle flow capacities ranging from 7 to 10 gpm (28 to 40 L/min), making it suitable for a wide range of medium-flow applications. It requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve, ensuring responsive control under varied conditions. The design incorporates Sun\u2019s floating style construction, which reduces the risk of internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Additionally, this model is built with hardened spool and sleeve components that not only minimize leakage but also enhance wear characteristics, thereby extending the valve's operational lifespan. The specified maximum valve leakage is maintained at an efficient rate of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). For installation, the valve has a hex size of 7/8 in. (22.2 mm) and requires an installation torque between 30 -35 lbf ft (41 -47 Nm). Weighing just 0.40 lb (0.20 kg), the DCCADTN is relatively lightweight yet durable enough to withstand demanding usage conditions. Its compatibility with Viton seal kits further ensures reliable performance in various hydraulic systems.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

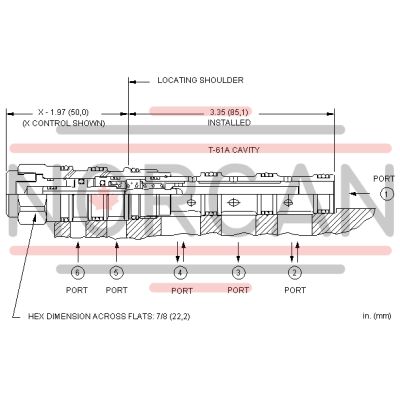

| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
