SUN HYDRAULICS
DCCAXBN
$177.41 USD
- SUN HYDRAULICS
- Material:DCCAXBN
- Model:DCCA-XBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCAXBN (DCCAXBN) is a three-position, 4-way directional cartridge valve, designed for robust performance in hydraulic systems. This model operates as a spring-centered, 6-port directional valve with the ability to be tailored through a selection of 10 different spool options depending on specific application needs. Each port, including the x and y pilot ports (port 5 and port 6), can handle up to 5000 psi or 350 bar. The DCCAXBN features hardened spool and sleeve components that ensure low leakage rates and superior wear characteristics, enhancing both durability and reliability. The valve's floating style construction minimizes the risk of internal parts binding which might otherwise occur due to excessive installation torque or variations in cavity/cartridge machining. This model fits into a T61A cavity and belongs to the Series 1 lineup from Sun Hydraulics. Its hydraulic capacity ranges from 7 to 10 gpm (28 to 40 L/min), with a minimum pilot pressure requirement of 175 psi or 12 bar for valve shifting. The maximum operating pressure again is notable at 5000 psi or 350 bar. Leakage specifications are meticulously detailed at a maximum of 2 in\u00b3/min per 1000 psi or about 30 cc/min per 70 bar, ensuring efficient operation even under high-pressure conditions. Pilot volume displacement stands at approximately .02 in\u00b3 or about .33 cc. For installation, the valve hex size is specified at .78 inches or about 22.2 mm, with an installation torque between approximately between the range of .30 - .35 lbf ft (41 -47 Nm). The model weighs around .40 lb or about .20 kg, making it compact yet robust for various hydraulic applications. The recommended seal kit for this cartridge is Viton:990061006.
The Sun Hydraulics DCCAXBN (DCCAXBN) is a three-position, 4-way directional cartridge valve, designed for robust performance in hydraulic systems. This model operates as a spring-centered, 6-port directional valve with the ability to be tailored through a selection of 10 different spool options depending on specific application needs. Each port, including the x and y pilot ports (port 5 and port 6), can handle up to 5000 psi or 350 bar. The DCCAXBN features hardened spool and sleeve components that ensure low leakage rates and superior wear characteristics, enhancing both durability and reliability. The valve's floating style construction minimizes the risk of internal parts binding which might otherwise occur due to excessive installation torque or variations in cavity/cartridge machining. This model fits into a T61A cavity and belongs to the Series 1 lineup from Sun Hydraulics. Its hydraulic capacity ranges from 7 to 10 gpm (28 to 40 L/min), with a minimum pilot pressure requirement of 175 psi or 12 bar for valve shifting. The maximum operating pressure again is notable at 5000 psi or 350 bar. Leakage specifications are meticulously detailed at a maximum of 2 in\u00b3/min per 1000 psi or about 30 cc/min per 70 bar, ensuring efficient operation even under high-pressure conditions. Pilot volume displacement stands at approximately .02 in\u00b3 or about .33 cc. For installation, the valve hex size is specified at .78 inches or about 22.2 mm, with an installation torque between approximately between the range of .30 - .35 lbf ft (41 -47 Nm). The model weighs around .40 lb or about .20 kg, making it compact yet robust for various hydraulic applications. The recommended seal kit for this cartridge is Viton:990061006.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

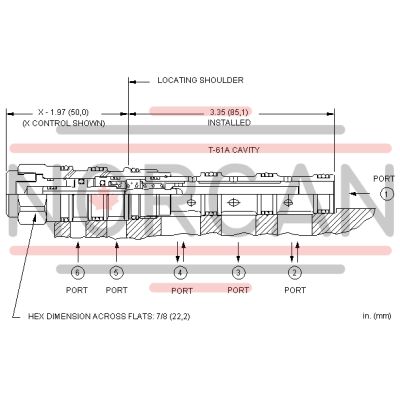

| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
