SUN HYDRAULICS
DCCAXCN
$172.45 USD
- SUN HYDRAULICS
- Material:DCCAXCN
- Model:DCCA-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCAXCN (DCCAXCN) is a high-performance hydraulic valve designed for versatile application in fluid power systems. This three-position, 4-way directional cartridge valve is spring-centered and features six ports, including x and y pilot ports (port 5 and port 6). Each port can handle a maximum operating pressure of 5000 psi (350 bar), making the valve suitable for high-pressure applications. The DCCAXCN offers a flow capacity ranging from 7 to 10 gpm (28 to 40 L/min) and requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve effectively. The model incorporates Sun Hydraulics' floating style construction which helps minimize internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. This feature, along with the hardened spool and sleeve, ensures low spool leakage rates and enhances wear characteristics, promoting reliability and longevity in demanding operational conditions. The valve's design allows for easy configuration with one of ten different spool options depending on specific application requirements. It also features a maximum valve leakage rate at 110 SUS (24 cSt) of only 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), demonstrating its efficiency in maintaining system integrity. Installation specifications include a hex size of 7/8 inch (22.2 mm) and an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). The model weighs approximately .40 lb (0.20 kg), making it lightweight yet robust for various hydraulic setups. The seal kit for this cartridge uses Viton material, ensuring compatibility with a wide range of fluids and environmental conditions for enhanced sealing performance.
The Sun Hydraulics DCCAXCN (DCCAXCN) is a high-performance hydraulic valve designed for versatile application in fluid power systems. This three-position, 4-way directional cartridge valve is spring-centered and features six ports, including x and y pilot ports (port 5 and port 6). Each port can handle a maximum operating pressure of 5000 psi (350 bar), making the valve suitable for high-pressure applications. The DCCAXCN offers a flow capacity ranging from 7 to 10 gpm (28 to 40 L/min) and requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve effectively. The model incorporates Sun Hydraulics' floating style construction which helps minimize internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. This feature, along with the hardened spool and sleeve, ensures low spool leakage rates and enhances wear characteristics, promoting reliability and longevity in demanding operational conditions. The valve's design allows for easy configuration with one of ten different spool options depending on specific application requirements. It also features a maximum valve leakage rate at 110 SUS (24 cSt) of only 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), demonstrating its efficiency in maintaining system integrity. Installation specifications include a hex size of 7/8 inch (22.2 mm) and an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). The model weighs approximately .40 lb (0.20 kg), making it lightweight yet robust for various hydraulic setups. The seal kit for this cartridge uses Viton material, ensuring compatibility with a wide range of fluids and environmental conditions for enhanced sealing performance.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

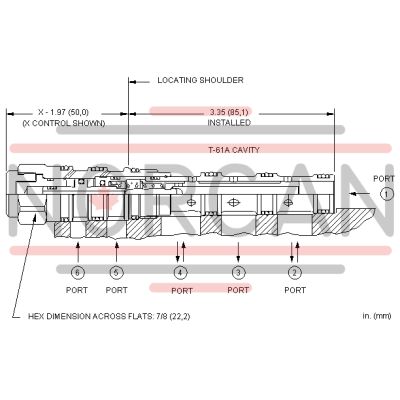

| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
