SUN HYDRAULICS
DCCAXHN
$181.38 USD
- SUN HYDRAULICS
- Material:DCCAXHN
- Model:DCCA-XHN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCAXHN (DCCAXHN) is a three-position, 4-way directional cartridge valve that is spring-centered and features a 6-port configuration. With a capacity to handle flow rates between 7 to 10 gallons per minute (28 to 40 liters per minute), this valve is versatile in application, suitable for various hydraulic systems. The DCCAXHN can withstand an operating pressure up to 5000 psi (350 bar) across all ports, including the x and y pilot ports (port 5 and port 6). This model requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve, ensuring reliability in operation. Designed with hardened spool and sleeve, the DCCAXHN offers low leakage rates and excellent wear characteristics, which enhances its durability and performance consistency over time. The incorporation of Sun's floating style construction minimizes internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. This feature aids in maintaining the operational integrity and longevity of the valve. The DCCAXHN is equipped with a Viton seal kit (990061006), which provides superior sealing capabilities suited for high-pressure environments. Additional technical specifications include a maximum valve leakage at 110 SUS (24 cSt) of 2 inches\u00b3/min at 1000 psi (30 cc/min at 70 bar), pilot volume displacement of .02 inches\u00b3 (0.33 cc), and an installation torque requirement between 30-35 lbf\u00b7ft (41-47 Nm). The model weighs approximately .40 pounds (0.20 kg) and has a hex size of 7/8 inches (22.2 mm), facilitating easier installation within various system configurations. This robust design paired with configurable spool options makes the DCCAXHN highly adaptable for specialized hydraulic applications requiring precise fluid control.
The Sun Hydraulics DCCAXHN (DCCAXHN) is a three-position, 4-way directional cartridge valve that is spring-centered and features a 6-port configuration. With a capacity to handle flow rates between 7 to 10 gallons per minute (28 to 40 liters per minute), this valve is versatile in application, suitable for various hydraulic systems. The DCCAXHN can withstand an operating pressure up to 5000 psi (350 bar) across all ports, including the x and y pilot ports (port 5 and port 6). This model requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve, ensuring reliability in operation. Designed with hardened spool and sleeve, the DCCAXHN offers low leakage rates and excellent wear characteristics, which enhances its durability and performance consistency over time. The incorporation of Sun's floating style construction minimizes internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. This feature aids in maintaining the operational integrity and longevity of the valve. The DCCAXHN is equipped with a Viton seal kit (990061006), which provides superior sealing capabilities suited for high-pressure environments. Additional technical specifications include a maximum valve leakage at 110 SUS (24 cSt) of 2 inches\u00b3/min at 1000 psi (30 cc/min at 70 bar), pilot volume displacement of .02 inches\u00b3 (0.33 cc), and an installation torque requirement between 30-35 lbf\u00b7ft (41-47 Nm). The model weighs approximately .40 pounds (0.20 kg) and has a hex size of 7/8 inches (22.2 mm), facilitating easier installation within various system configurations. This robust design paired with configurable spool options makes the DCCAXHN highly adaptable for specialized hydraulic applications requiring precise fluid control.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

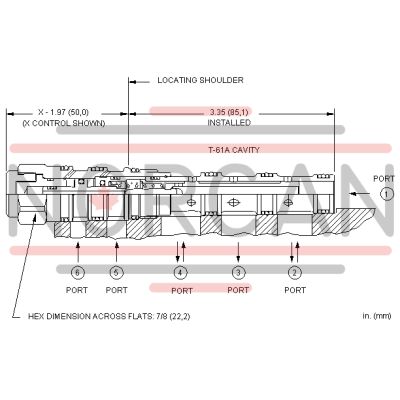

| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
