SUN HYDRAULICS
DCCAXRN
$177.41 USD
- SUN HYDRAULICS
- Material:DCCAXRN
- Model:DCCA-XRN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCAXRN (DCCAXRN) is a versatile hydraulic component designed for high-pressure applications. This three-position, 4-way directional cartridge valve is spring-centered and features six ports, including the X and Y pilot ports. Each port can handle up to 5000 psi (350 bar), making the valve suitable for robust hydraulic systems. The DCCAXRN offers a selection of 10 different spool options, allowing customization based on specific operational requirements. The valve operates with a capacity ranging between 7 to 10 gallons per minute (28 to 40 liters per minute), depending on the spool type chosen. It requires a minimum pilot pressure of 175 psi (12 bar) to shift effectively, ensuring responsive control in various machine operations. The maximum operating pressure for this model is consistently high at 5000 psi (350 bar). One of the standout features of the DCCAXRN is its hardened spool and sleeve which provide low leakage rates and exceptional wear characteristics, crucial for maintaining system integrity and performance over time. The valve also incorporates Sun's floating style construction, which minimizes internal parts binding\u2014a common issue in systems subjected to excessive installation torque or variations in cavity/cartridge machining. Leakage specifications are meticulously detailed, with a maximum valve leakage at 110 SUS (24 cSt) noted as 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). This precision underscores the valve\u2019s reliability in maintaining system efficiency and preventing fluid loss. For installation, the valve has a hex size of 7/8 inch (22.2 mm) and requires an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). Weighing just .40 lb (0.20 kg), it is relatively lightweight yet durable enough to withstand demanding conditions. The seal kit for this cartridge uses Viton material, ensuring compatibility with various fluids and enhancing the longevity of the seal under diverse operating temperatures.
The Sun Hydraulics DCCAXRN (DCCAXRN) is a versatile hydraulic component designed for high-pressure applications. This three-position, 4-way directional cartridge valve is spring-centered and features six ports, including the X and Y pilot ports. Each port can handle up to 5000 psi (350 bar), making the valve suitable for robust hydraulic systems. The DCCAXRN offers a selection of 10 different spool options, allowing customization based on specific operational requirements. The valve operates with a capacity ranging between 7 to 10 gallons per minute (28 to 40 liters per minute), depending on the spool type chosen. It requires a minimum pilot pressure of 175 psi (12 bar) to shift effectively, ensuring responsive control in various machine operations. The maximum operating pressure for this model is consistently high at 5000 psi (350 bar). One of the standout features of the DCCAXRN is its hardened spool and sleeve which provide low leakage rates and exceptional wear characteristics, crucial for maintaining system integrity and performance over time. The valve also incorporates Sun's floating style construction, which minimizes internal parts binding\u2014a common issue in systems subjected to excessive installation torque or variations in cavity/cartridge machining. Leakage specifications are meticulously detailed, with a maximum valve leakage at 110 SUS (24 cSt) noted as 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). This precision underscores the valve\u2019s reliability in maintaining system efficiency and preventing fluid loss. For installation, the valve has a hex size of 7/8 inch (22.2 mm) and requires an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). Weighing just .40 lb (0.20 kg), it is relatively lightweight yet durable enough to withstand demanding conditions. The seal kit for this cartridge uses Viton material, ensuring compatibility with various fluids and enhancing the longevity of the seal under diverse operating temperatures.

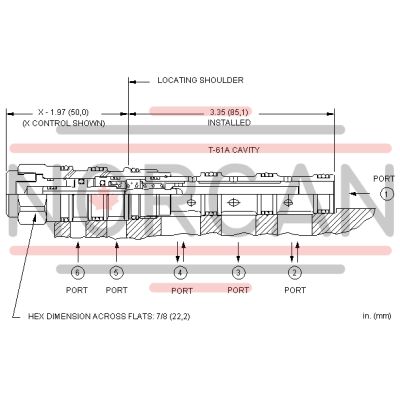

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
