SUN HYDRAULICS
DCCAXYN
$172.45 USD
- SUN HYDRAULICS
- Material:DCCAXYN
- Model:DCCA-XYN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

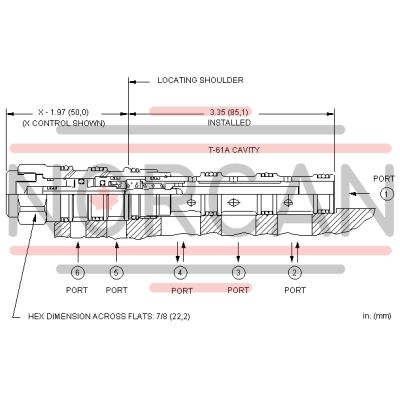

The Sun Hydraulics DCCAXYN (DCCAXYN) is a three-position, 4-way directional cartridge valve that is spring-centered and features six ports, including the supply port designated as port 1. This model has been engineered to accommodate a variety of spool options, with ten different spools available to choose from, allowing customization based on specific application requirements. Each of these spools determines the capacity of these pilot-to-shift valves, which ranges from 7 to 10 gallons per minute (28 to 40 liters per minute). Designed for high-pressure applications, all ports on the DCCAXYN can handle up to 5000 psi (350 bar), which includes both the x and y pilot ports (port 5 and port 6). The valve is noted for its minimal leakage rates which are meticulously listed in its technical data for each path. This performance feature is attributed to the hardened spool and sleeve that not only ensure low spool leakage but also contribute to excellent wear characteristics. Another significant aspect of this model is its incorporation of Sun\u2019s floating style construction. This design minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity or cartridge machining. Key technical specifications include a minimum pilot pressure requirement of 175 psi (12 bar) for valve shifting, maximum operating pressure capability of 5000 psi (350 bar), and a maximum valve leakage at 110 SUS (24 cSt) rated at approximately 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The valve's hex size is measured at 7/8 inches (22.2 mm), with an installation torque between 30 -35 lbf ft (41 -47 Nm), and it weighs about 0.40 lb (0.20 kg). The recommended seal kit for this cartridge is Viton: 990061006.
The Sun Hydraulics DCCAXYN (DCCAXYN) is a three-position, 4-way directional cartridge valve that is spring-centered and features six ports, including the supply port designated as port 1. This model has been engineered to accommodate a variety of spool options, with ten different spools available to choose from, allowing customization based on specific application requirements. Each of these spools determines the capacity of these pilot-to-shift valves, which ranges from 7 to 10 gallons per minute (28 to 40 liters per minute). Designed for high-pressure applications, all ports on the DCCAXYN can handle up to 5000 psi (350 bar), which includes both the x and y pilot ports (port 5 and port 6). The valve is noted for its minimal leakage rates which are meticulously listed in its technical data for each path. This performance feature is attributed to the hardened spool and sleeve that not only ensure low spool leakage but also contribute to excellent wear characteristics. Another significant aspect of this model is its incorporation of Sun\u2019s floating style construction. This design minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity or cartridge machining. Key technical specifications include a minimum pilot pressure requirement of 175 psi (12 bar) for valve shifting, maximum operating pressure capability of 5000 psi (350 bar), and a maximum valve leakage at 110 SUS (24 cSt) rated at approximately 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The valve's hex size is measured at 7/8 inches (22.2 mm), with an installation torque between 30 -35 lbf ft (41 -47 Nm), and it weighs about 0.40 lb (0.20 kg). The recommended seal kit for this cartridge is Viton: 990061006.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
